Plastic Pipe Production Line
Inset cylindrical drip irrigation pipe production line introduction

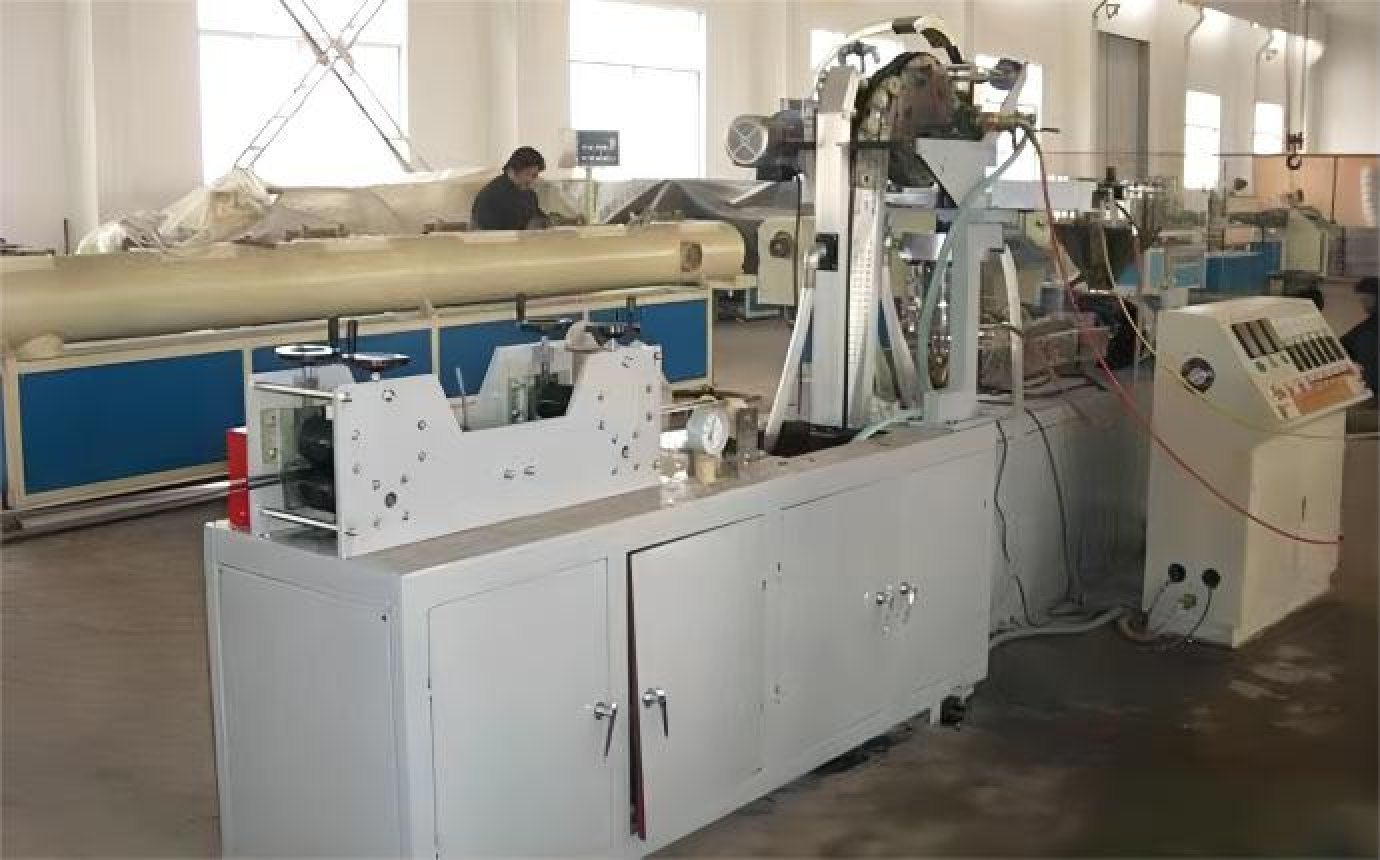

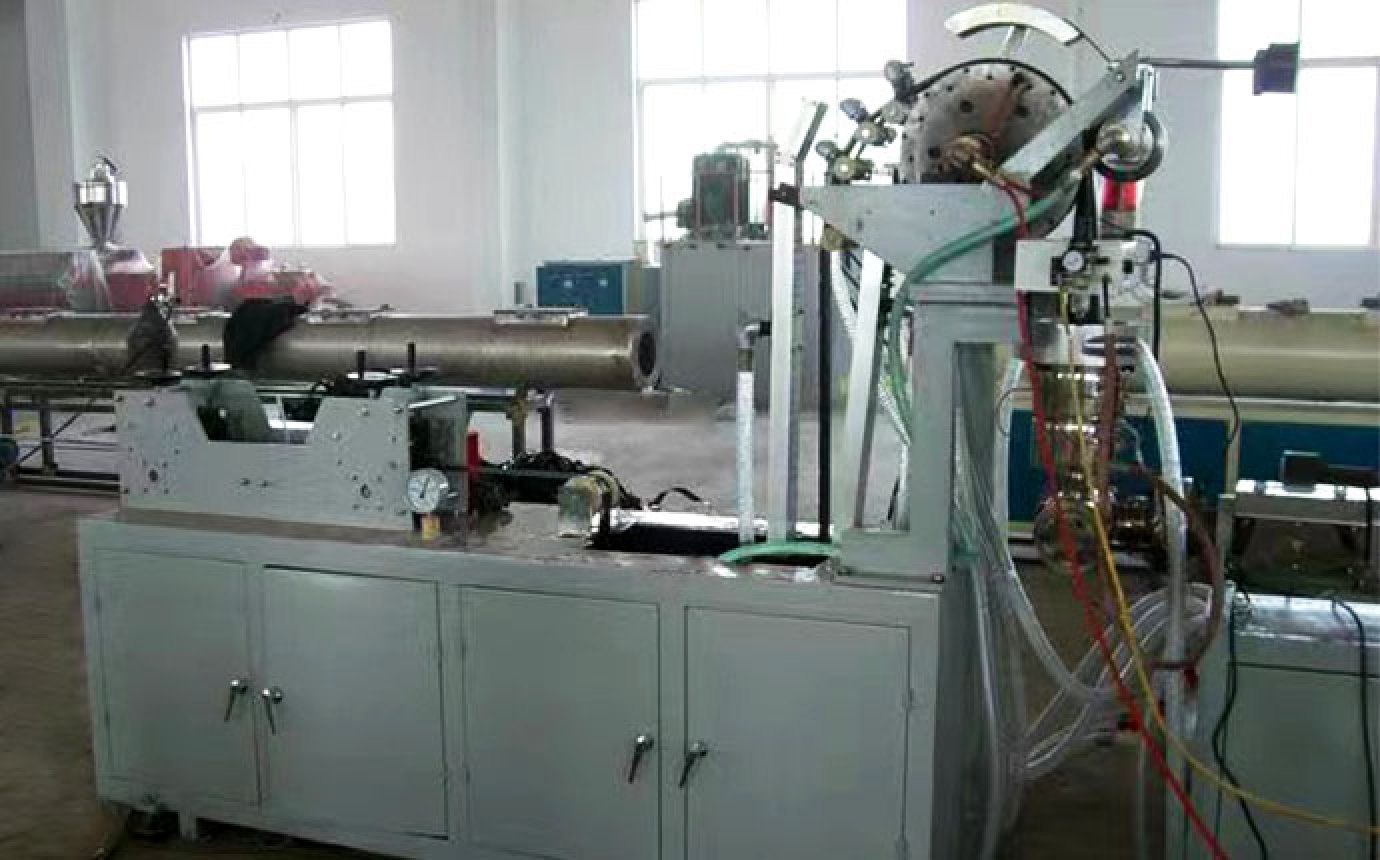

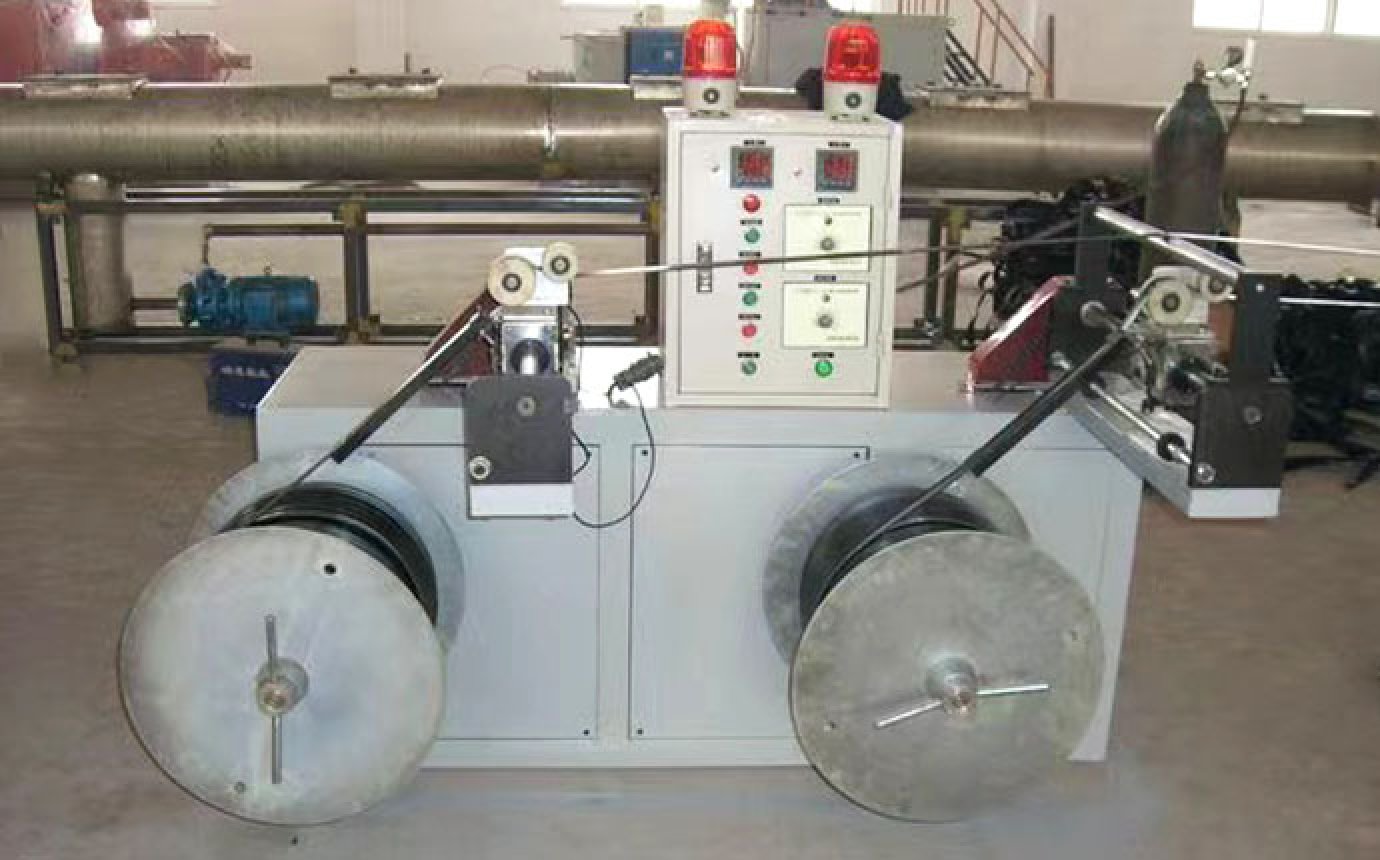

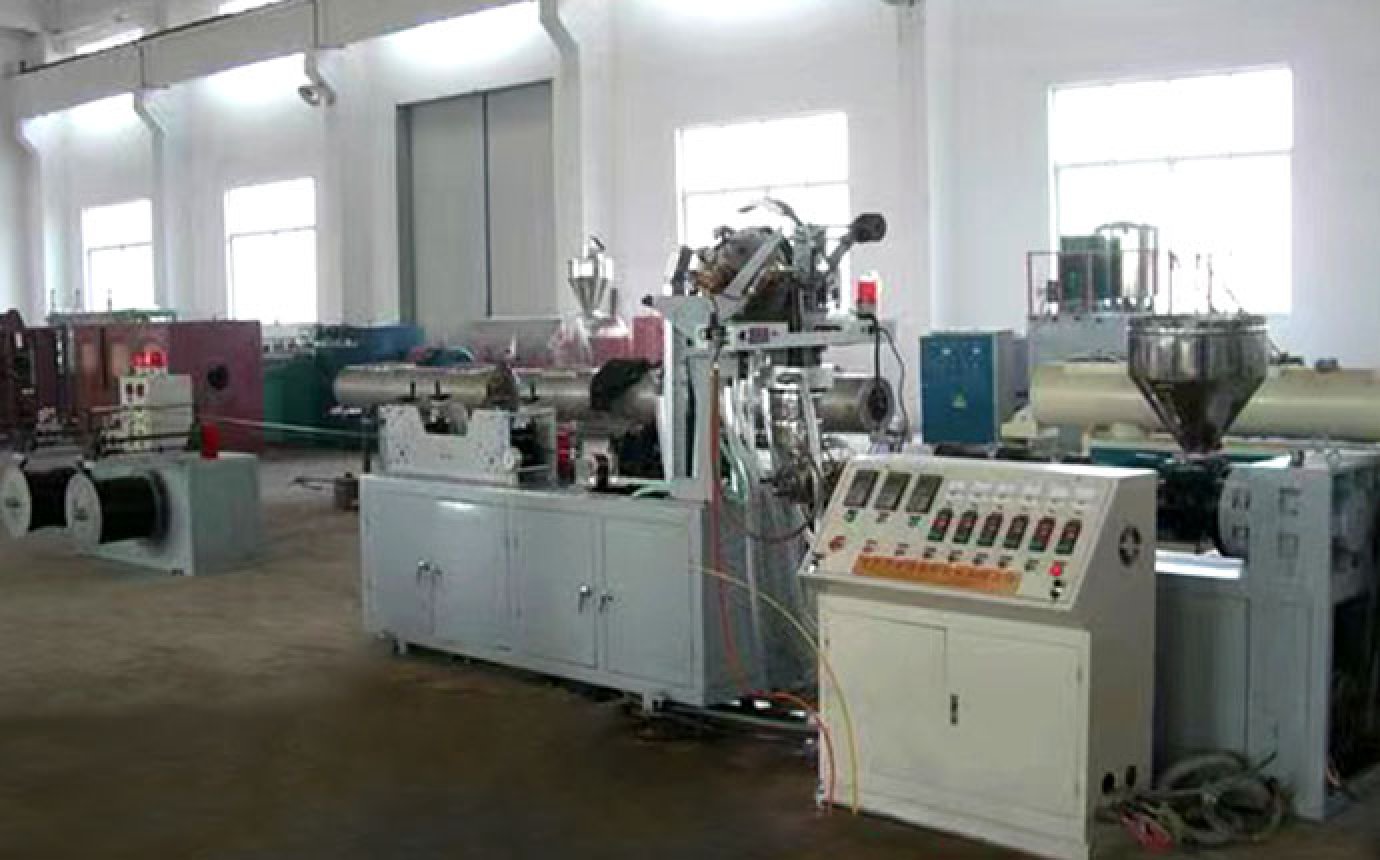

The production line of inner inlaid cylindrical drip irrigation pipe mainly consists of extruder ,drip head conveying device ,mold vacuum setting box ,tractor and winder.
Inquire Now
Add to Inquiry Basket
Product Overview
The SMT Drip Irrigation Pipe Production Line is a fully integrated solution designed to manufacture precision drip irrigation pipes for agriculture, landscaping, and greenhouse applications. Combining advanced extrusion, laser perforation, and drip emitter embedding technologies, this line ensures consistent production of durable, leak-free pipes with optimized water distribution.
Key Features
High-Speed Extrusion: Processes LDPE, LLDPE, or PVC materials at speeds up to 30–80 meters/minute (adjustable based on pipe diameter).
Laser Precision Perforation: Automated laser drilling ensures accurate hole spacing (0.1–1.5m intervals) and diameter (0.3–2.0mm) with ±0.05mm tolerance.
Emitter Integration: In-line embedding of pressure-compensating (PC) or non-PC drip emitters for uniform water flow.
Smart Control: PLC + touchscreen HMI monitors extrusion temperature, traction speed, and perforation density in real time.
Energy Efficiency: Servo-driven motors and heat recovery systems reduce energy consumption by 20%.
Technical Specifications
Pipe Diameter: 12mm–32mm
Wall Thickness: 0.2mm–2.0mm
Power Supply: 380V/50Hz (configurable to regional standards)
Output: 500–2,000 kg/day (dependent on material and pipe design)
Advantages
Water-Saving Design: Produces pipes with 90%+ irrigation efficiency.
Durability: UV-stabilized materials resist cracking and weathering.
Customization: Supports flat, round, or collapsible pipe profiles and multi-color printing.
Low Maintenance: Modular design for easy cleaning and mold changes.
Applications
Farmland and orchard irrigation
Greenhouse hydroponics
Urban landscaping and golf courses
Certifications
CE, ISO 9001, and ISO 14001 certified.
Complies with ISO 9261 (agricultural irrigation equipment) standards.
Support
On-site installation, operator training, and 24/7 technical support.
Custom solutions for anti-clogging emitters or hybrid multilayer pipes.
