Plastic Pipe Production Line

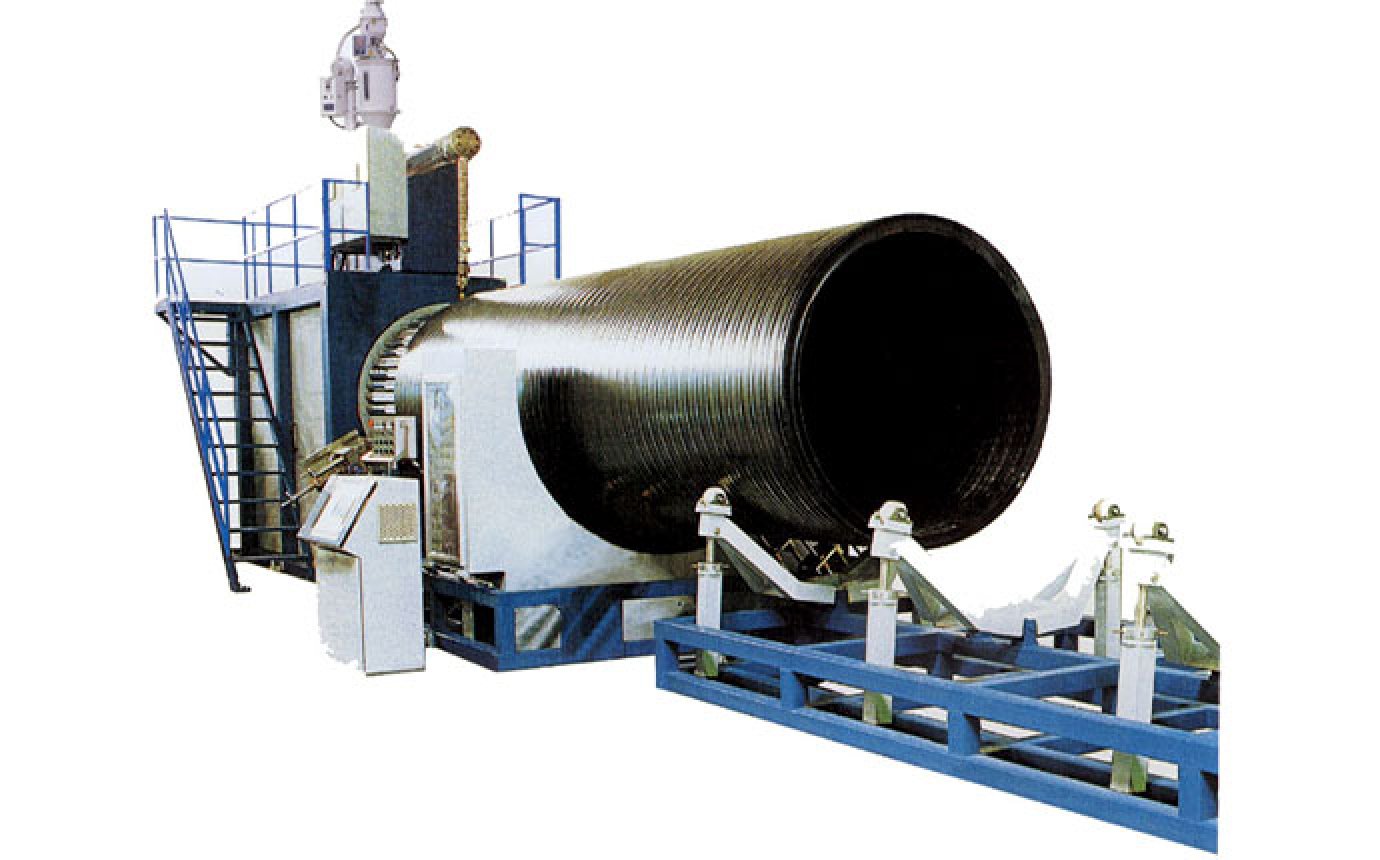

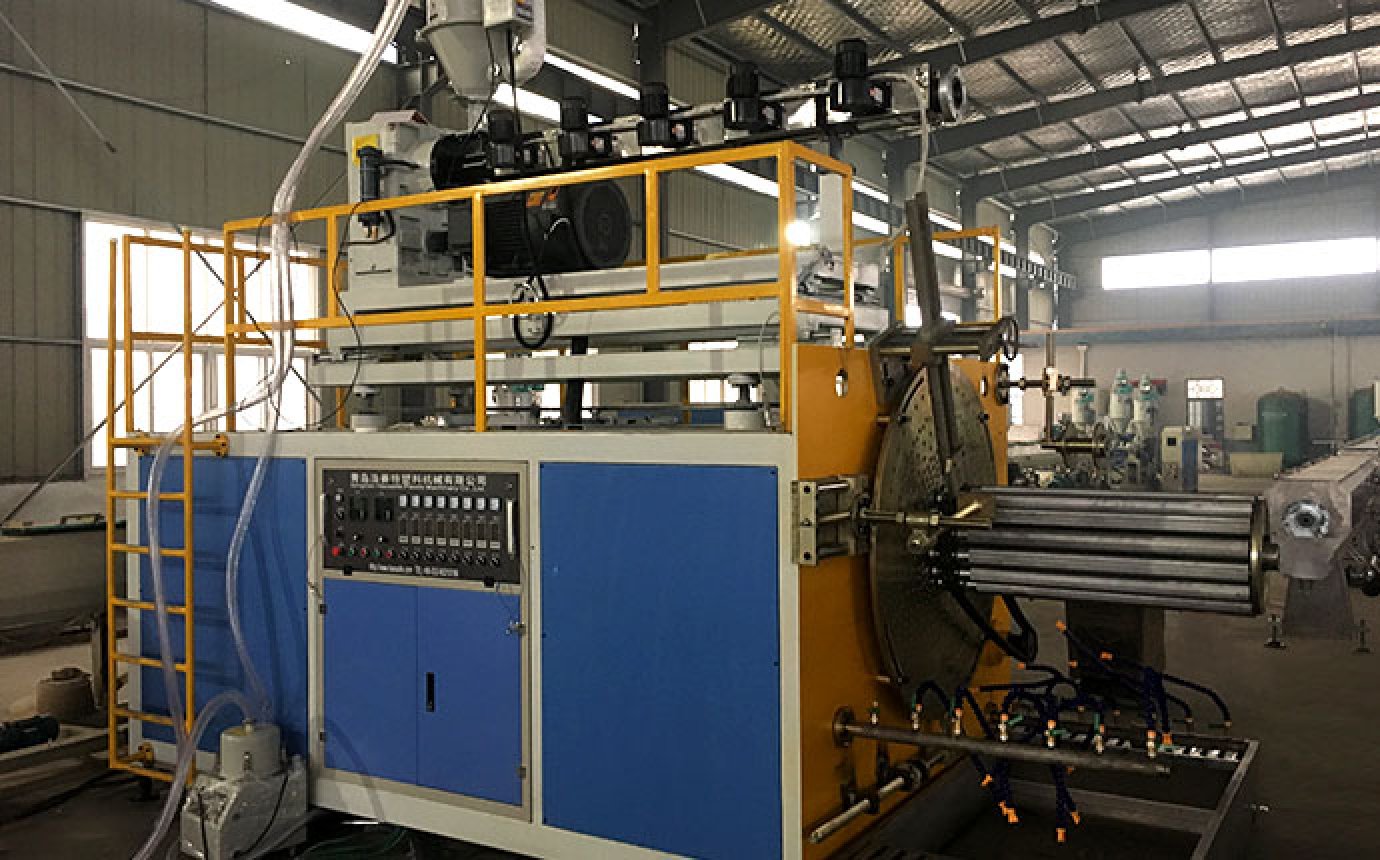

Carat tube is high density polyethylene (HCPE) as the main raw material ,with hot winding molding process ,processing and production of pipes ,its production line is mainly composed of :extruder, mold and sizing sleeve ,vacuum water tank,spray water tank, tractor,forming machine ,cutting machine,unloading rack and other parts ,the whole production line adopts PLC automatic control, the interface is simple and the easy to control.

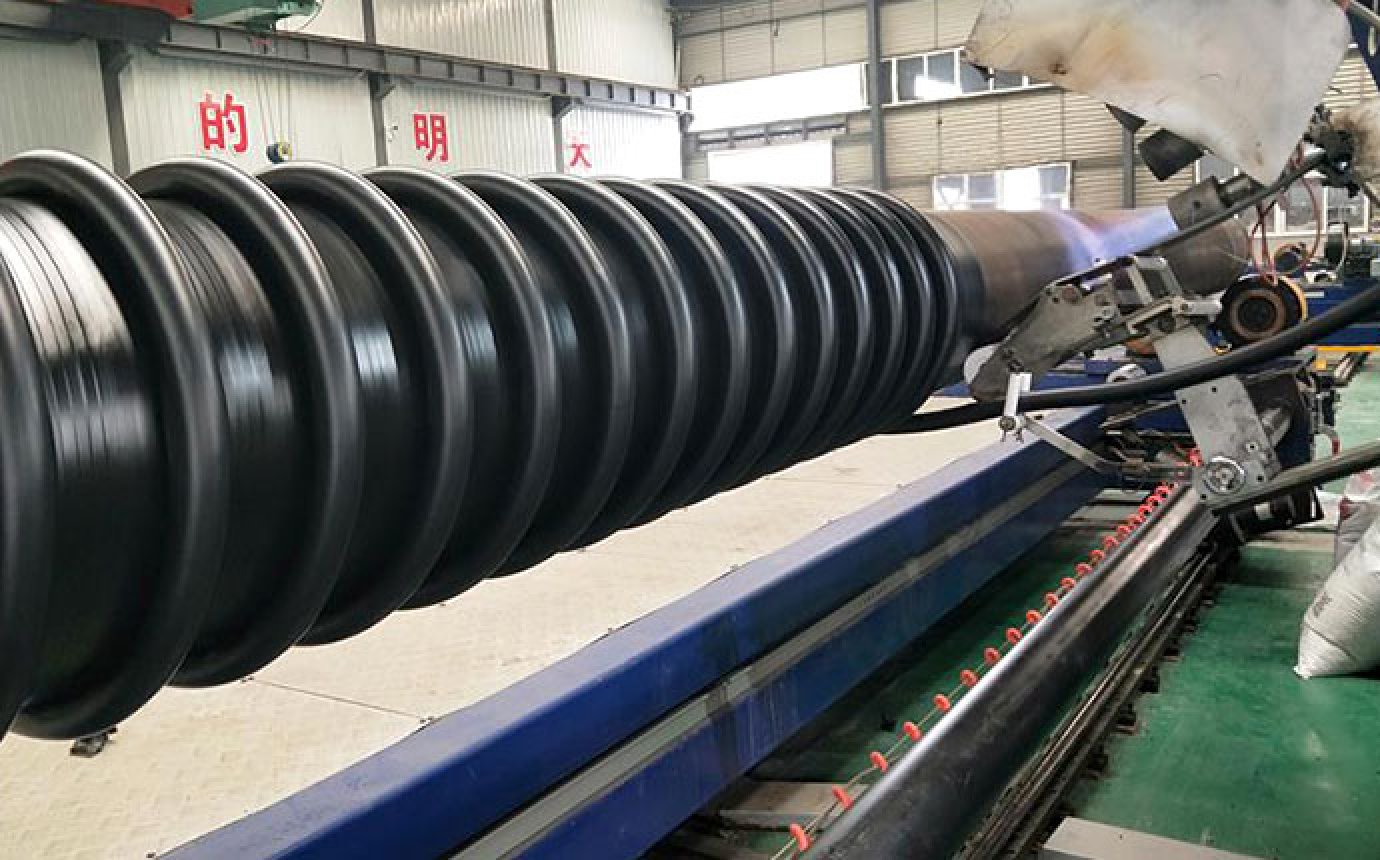

The inner wall of the pipe is smooth ,and the outside is a circular reinforced structure, with the characteristics of light weight ,high hardness and strong pressure resistance .because this kind of pipeline is introduced by a domestic company from the german carat company ,so commonly known as this kind of pipeline is the carat tube in china.
Inquire Now
Add to Inquiry Basket
Carat Tube Production Line
High-Precision Manufacturing System for Micro-Diameter Tubes & Catheters
Product Overview
The Carat Tube Production Line is an advanced, fully automated system designed to produce ultra-precision micro-diameter tubes (0.5mm–10mm) for medical, pharmaceutical, laboratory, and microfluidic applications. Combining cutting-edge extrusion, laser calibration, and real-time quality control, this line ensures consistent wall thickness (±0.01mm tolerance) and superior surface finish for critical fluid transfer and catheter applications.
Key Features
Nano-Precision Extrusion: Multi-layer co-extrusion technology for tubes with concentricity >99% and wall thickness down to 0.05mm.
Laser Diameter Control: Closed-loop laser measurement adjusts extrusion speed dynamically, ensuring ±0.005mm dimensional accuracy.
Material Versatility: Processes PU, PVC, FEP, TPU, Silicone, and medical-grade polymers.
Cleanroom Compatibility: Optional ISO Class 5–7 cleanroom modules for medical/lab-grade tube production.
Smart Automation: PLC + HMI with AI-driven defect detection (pinholes, bubbles) and data logging for traceability.
Technical Specifications
Tube Diameter: 0.5mm–10mm
Production Speed: 10–50 meters/minute (adjustable)
Tolerance: ID/OD ±0.005mm, Wall ±1%
Power: 220V/380V, 50/60Hz
Output: 500–2,000 kg/month (model-dependent)
Advantages
✅ Medical Compliance: Meets USP Class VI, FDA, and EU MDR standards for biocompatibility.
✅ Zero Contamination: Anti-static, corrosion-resistant components for critical environments.
✅ Customization: Multi-lumen, tapered, or braid-reinforced tube configurations.
✅ Energy Efficiency: Servo-driven systems reduce power use by 35%.
Applications
Medical catheters and IV tubing
Microfluidic devices and lab-on-a-chip systems
Pharmaceutical fluid transfer
Aerospace hydraulic lines
Certifications
CE, ISO 13485 (medical devices), and RoHS compliant.
