PVC Skin Foam Board Production Line
Premium Multi-Layer Foam Core Panel Manufacturing System
Key Features:
Advanced Co-Extrusion: Seamless lamination of PVC skin layers with foam core (thickness: 3-30mm).
High Precision: ±0.2mm tolerance for flawless surface finish (glossy/matte/textured).
Eco-Friendly: Recyclable materials, low energy consumption, and zero formaldehyde.
Smart Automation: AI-driven defect detection, IoT-enabled remote monitoring.
Specifications:
Output: 600–1,200 kg/h
Board Width: 600–1500mm
Applications: Signage, partitions, furniture, automotive interiors.
Certifications: CE, ISO, SGS | Warranty: 2-year machine guarantee.
Inquire Now
Add to Inquiry Basket
General descriptions
Power / ：380V/3p/50Hz；
Raw material ： PVC powder+additives ；
Final product ：1220x2440mm,δ=4～20mm；
Output ：300～350kg/h
Machine list ：

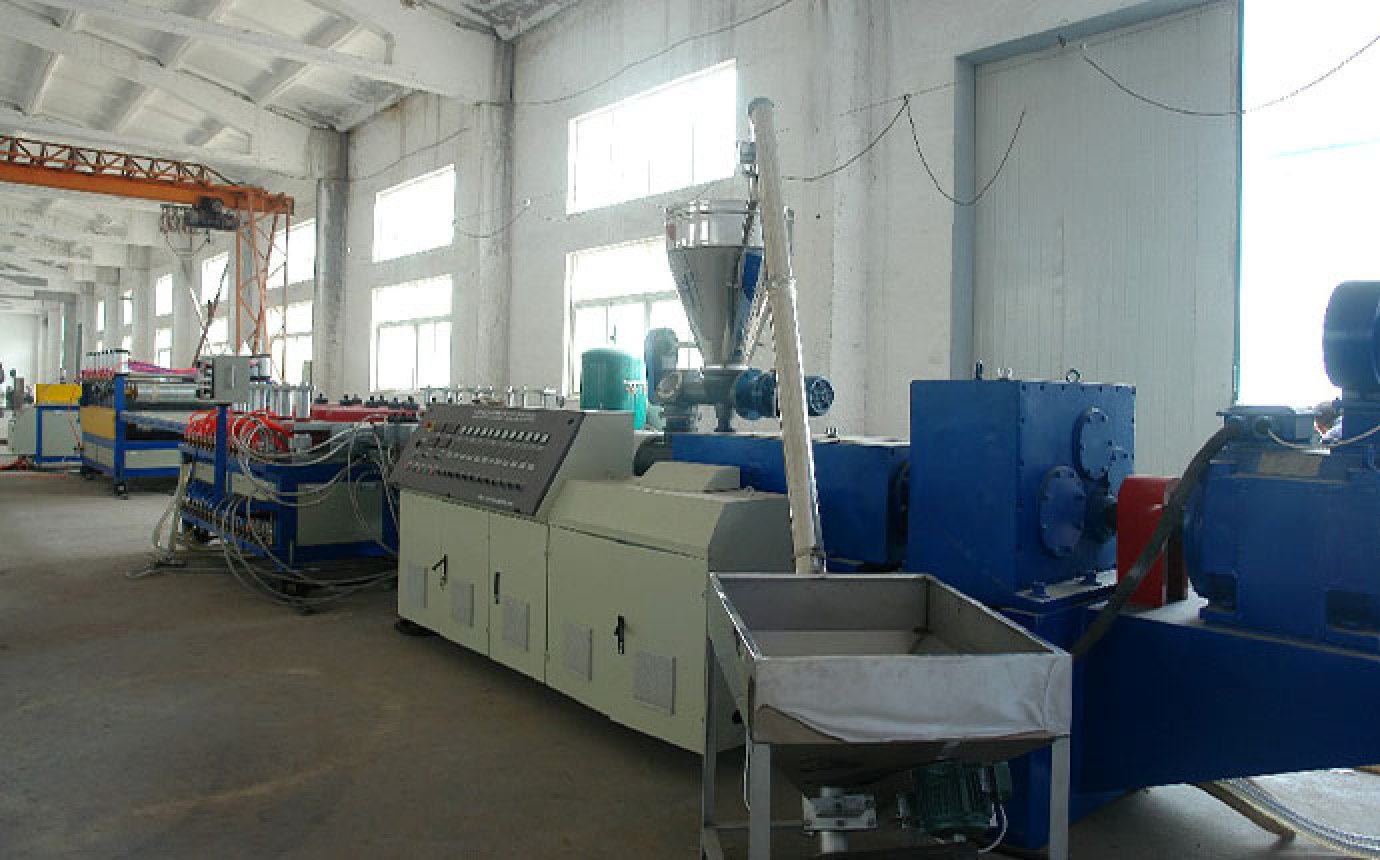

1、SJZ80/156/173 Conical twin extruder

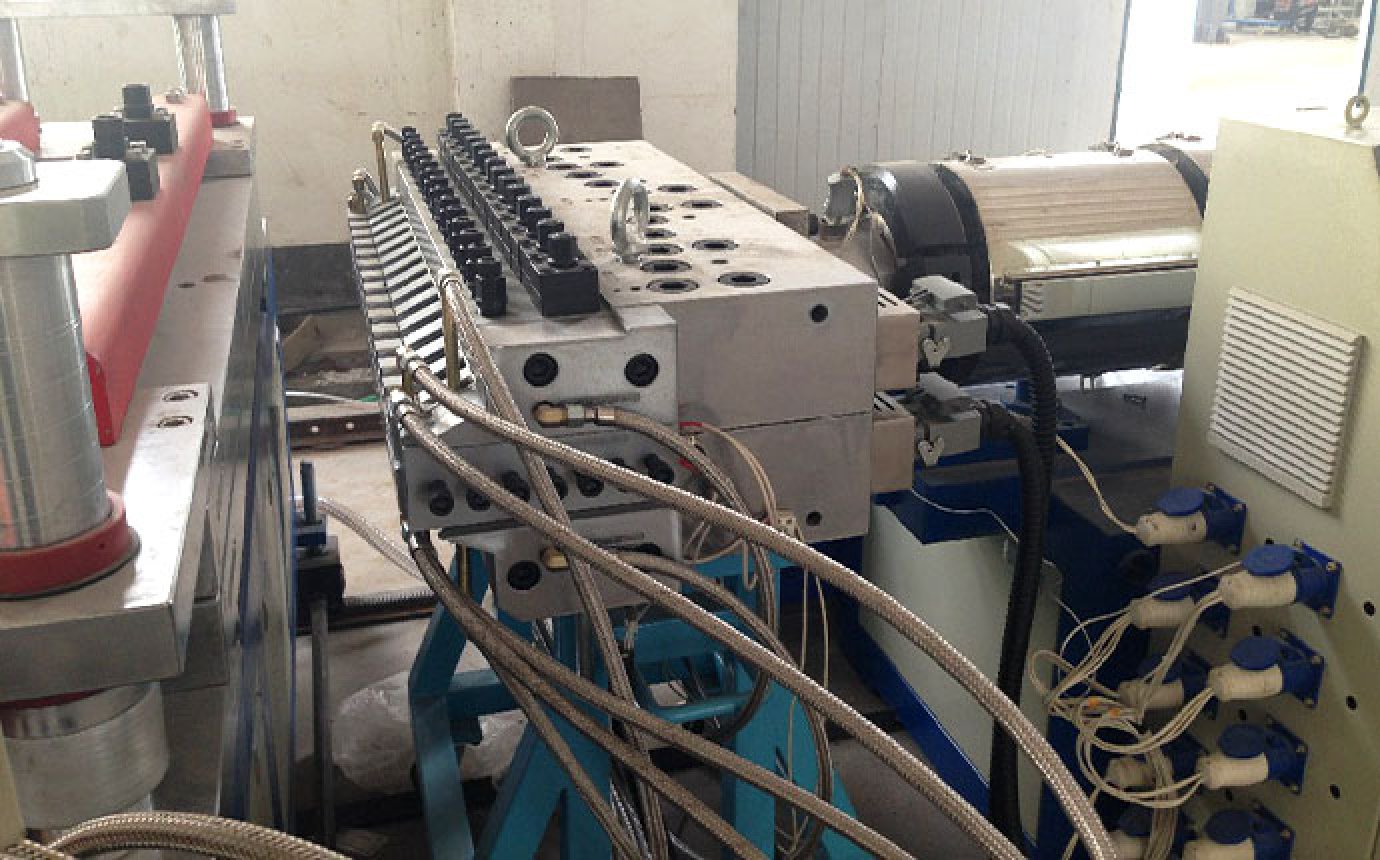

2、L=1320 T-Die
3、T-Die Lip temperature control system

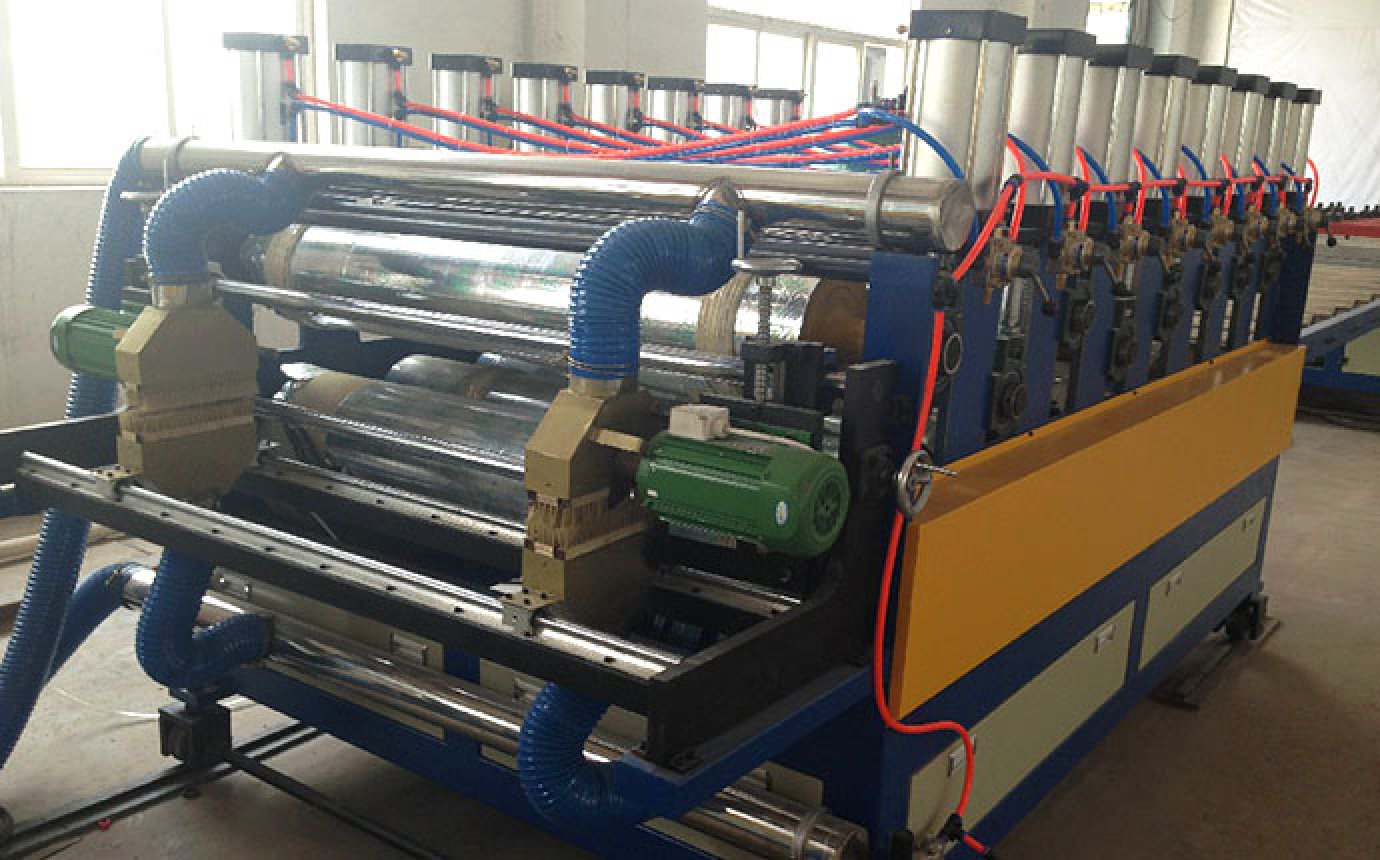

4、Forming machine
5、Cooling bracket
6、Haul-off unit

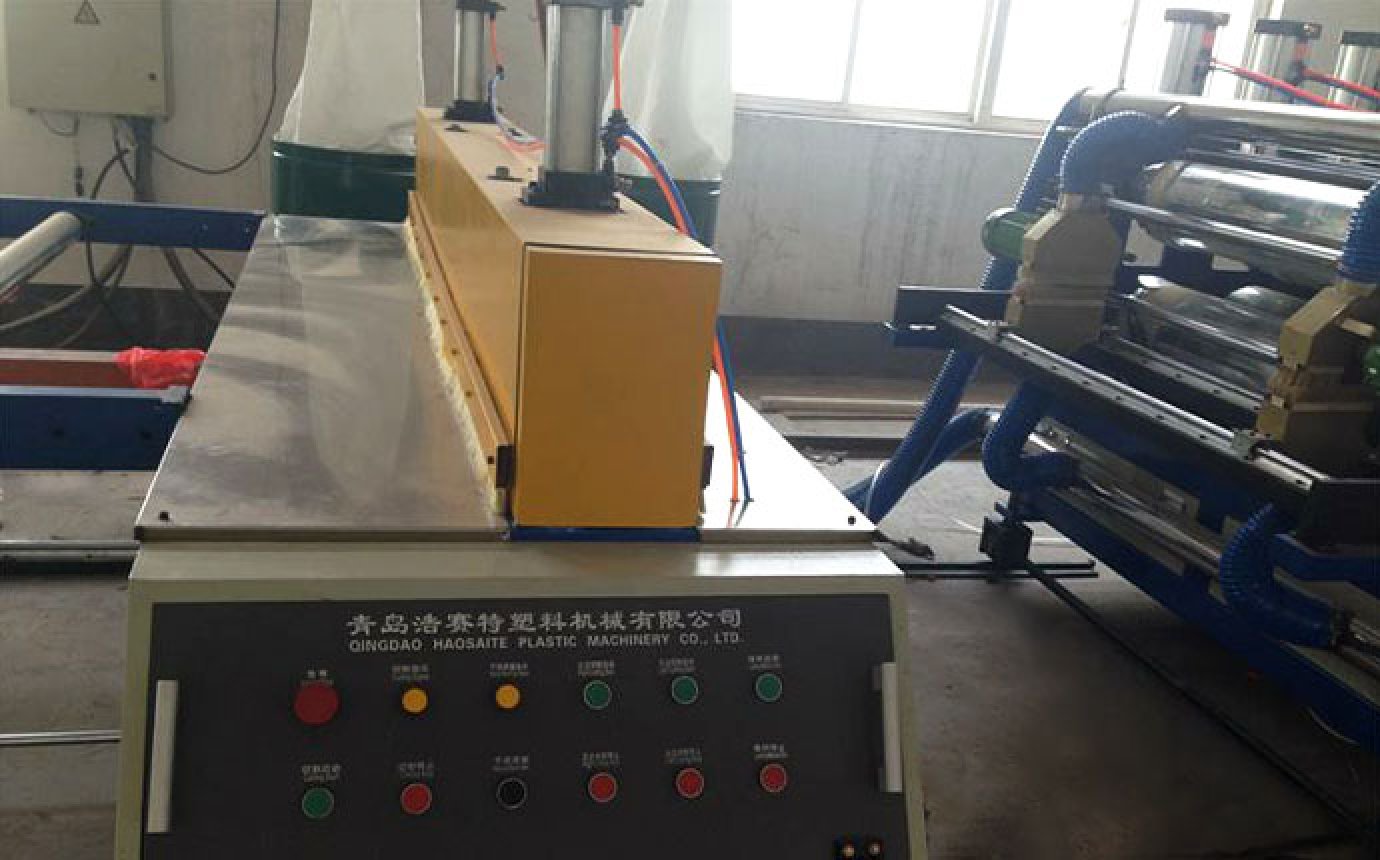

7、Cutting unit in Length and breadth /
8、Dust vacuuming unit
9、Stacker
10、Dust vacuuming unit
11、Electric controlling system
12、 Auxiliary equipment
1).SRL-Z500/1000 Mixer
2).SWP360 Crusher
3) SMP500 miller
4)20P Chiller
