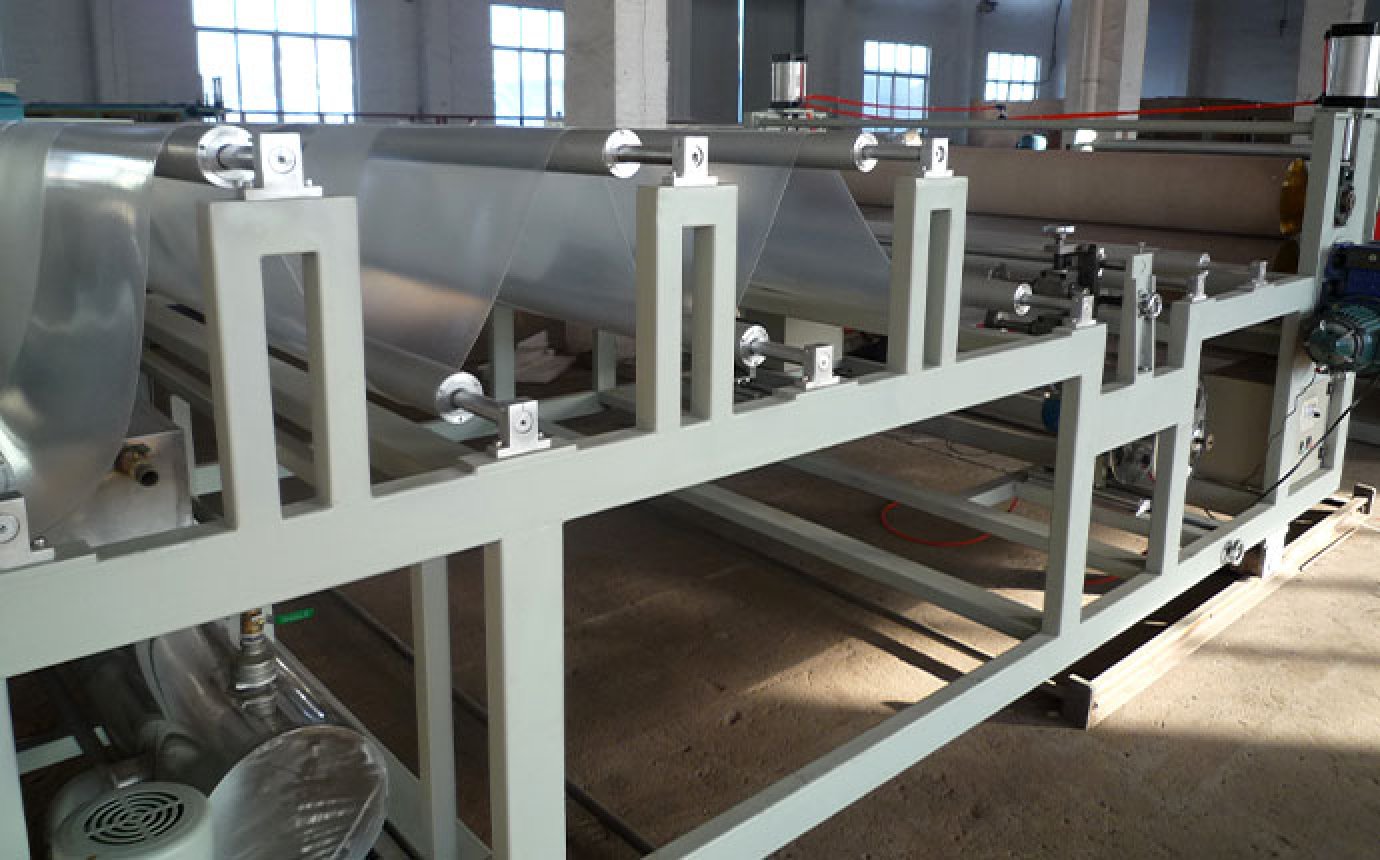

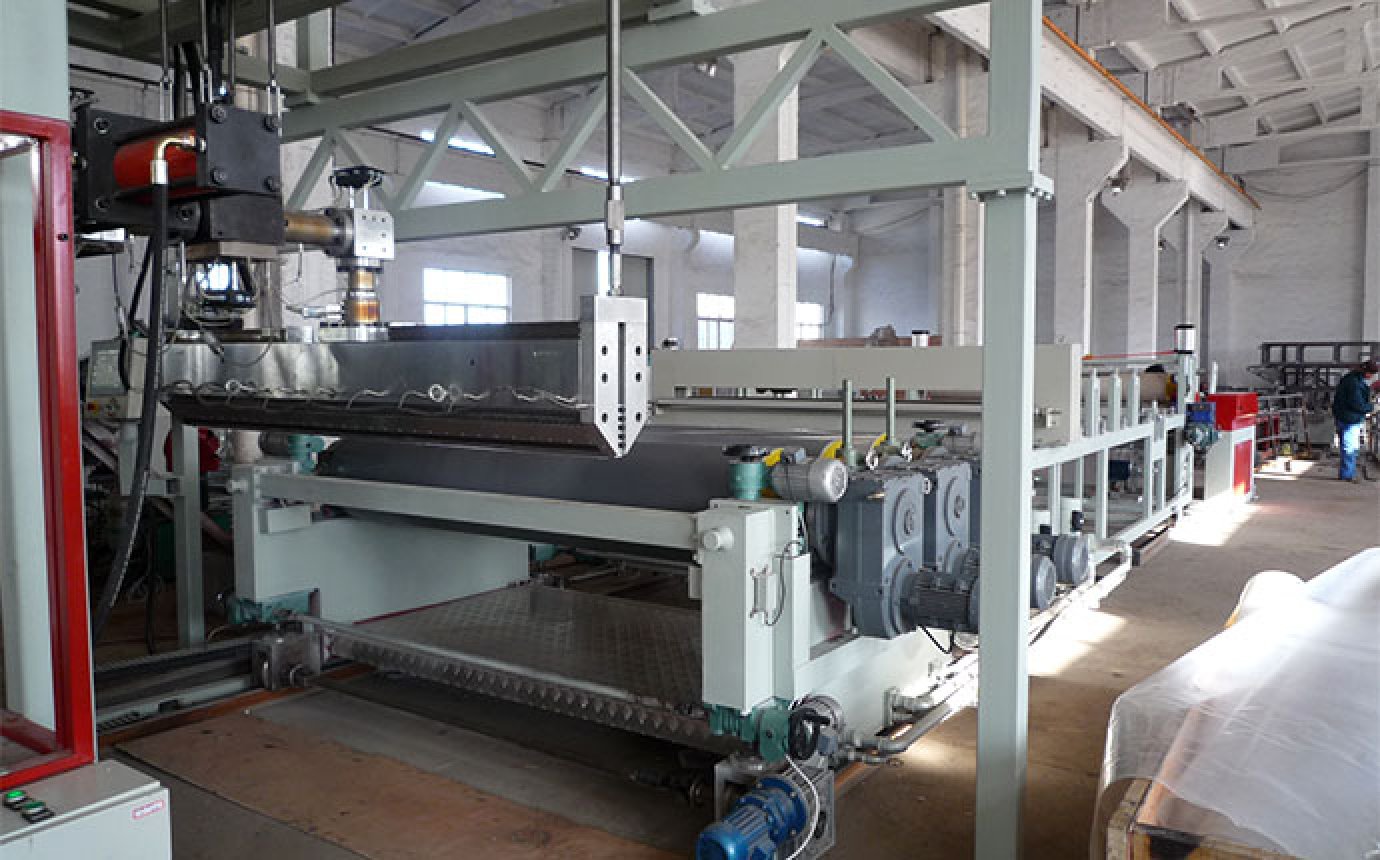

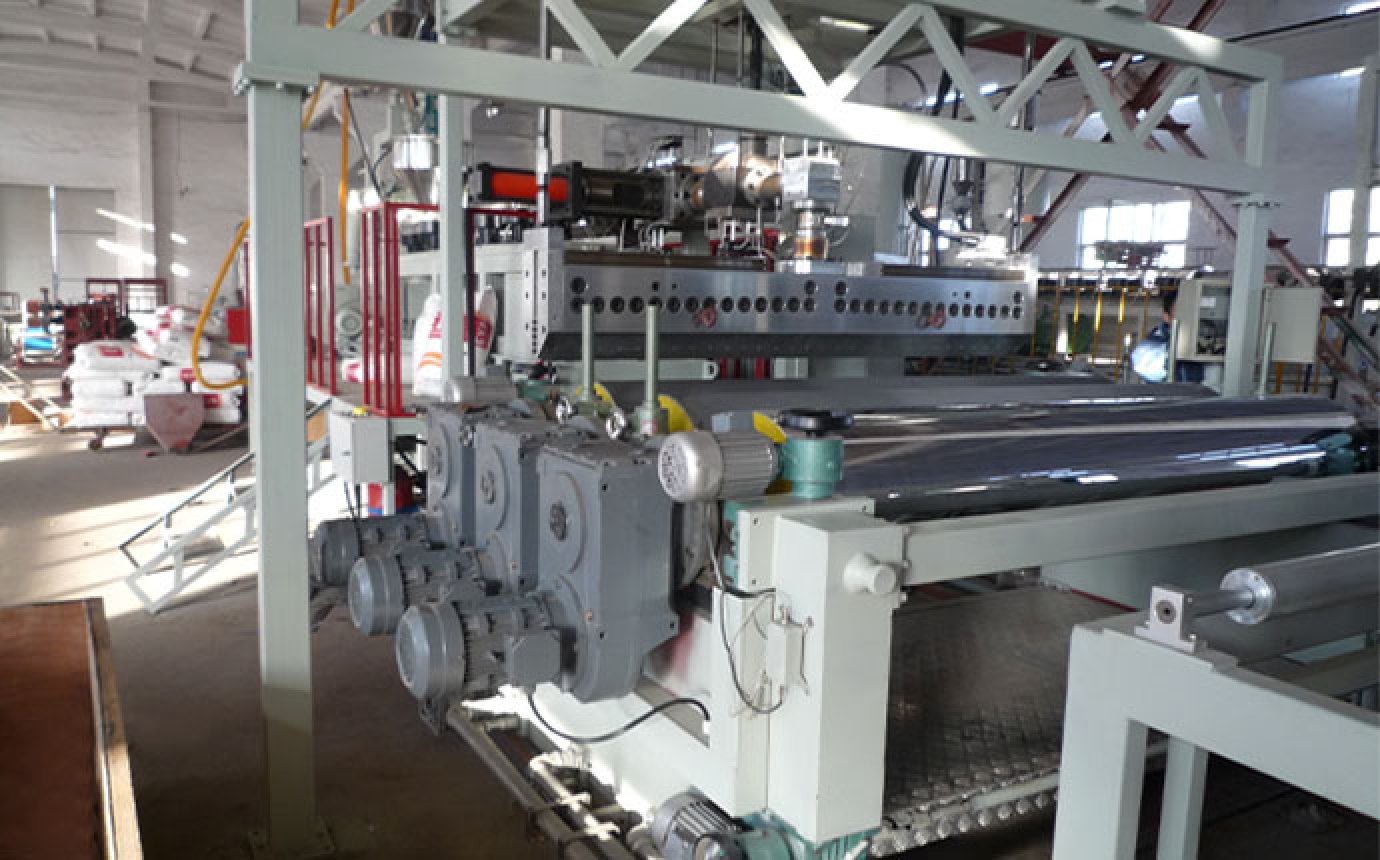

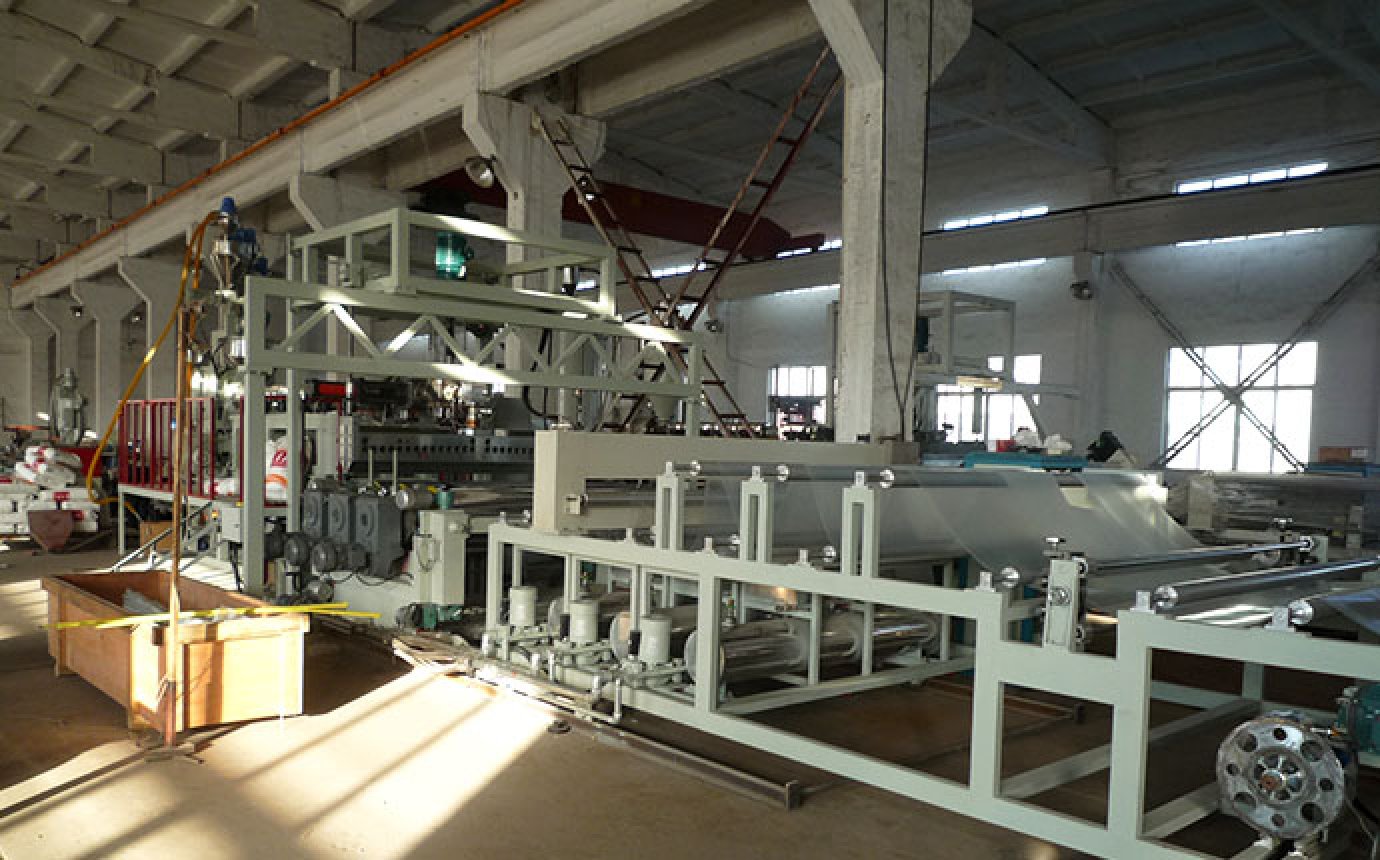

Plastic Sheet Production Line
PVB(EVA） glass laminated film production line produced by the PVB film is sandwiched between two layers of glass ,so as to make a stronger impact resistance of glass ,so as to make a stringer impact resistance of the glass ,wifely used in automotive glass soundproof glass.
EVA(PVB）glass film produced by PVB glass film production line is non-viscous at room temperature and easy to operate . after hot pressing,the adhesion is enhanced to produce a permanent adhesive seal ,which is a new type of thermosetting hot melt adhesive film.
Inquire Now
Add to Inquiry Basket
PVB film production line features :
1. Using double screw extruder , excellent screw combination design ensures uniform extrusion of raw materials to adapt to the production of different raw materials such as PVB.
2. Water cooled type of fully automatic cooling performance ,can accurately control the temperature ,to ensure the production of qualified products .
3. Using automatic intelligent measurement ,and can automatically adjust the pressure before and after the measurement ,so that the raw material extrusion is uniform ,ensure product quality ,reduce energy consumption.
4. Special mold lip design,make the product quality more stable.
Products are widely used in construction photovoltaic ,automotive glass and other industries ,while ensuring the safety performance ,there are excellent sound insulation ,light avoidance ,heat preservation, heat insulation ,anti-fog and other properties ,is the ideal safety glass.
Title: Fully Automated PVB/EVA Film Production Line | High-Efficiency Film Manufacturing Equipment
Product Highlights:
Advanced Extrusion Technology: Produces uniform PVB/EVA films (0.1-3.0mm thickness) for automotive, solar panels, and packaging industries.
High-Speed Output: Achieves up to 2,000 kg/day production with ±0.05mm precision, reducing material waste.
Energy-Saving Design: Integrated cooling system and servo-driven motors cut energy costs by 25%.
Customizable Solutions: Adjustable film width (500-3,000mm), thickness, and surface texture (matte/glossy).
Smart Automation: PLC + HMI control system for real-time monitoring and minimal manual intervention.
