Plastic Sheet Production Line
PVC resin tile production line ,also called wave tile production line or glazed tile resin tile equipment .the product adopts two-layer co-extrusion technology to complete the processing ,mainly used in the flat slope ,villa, a house ,garden pavilions and other roofing fields.

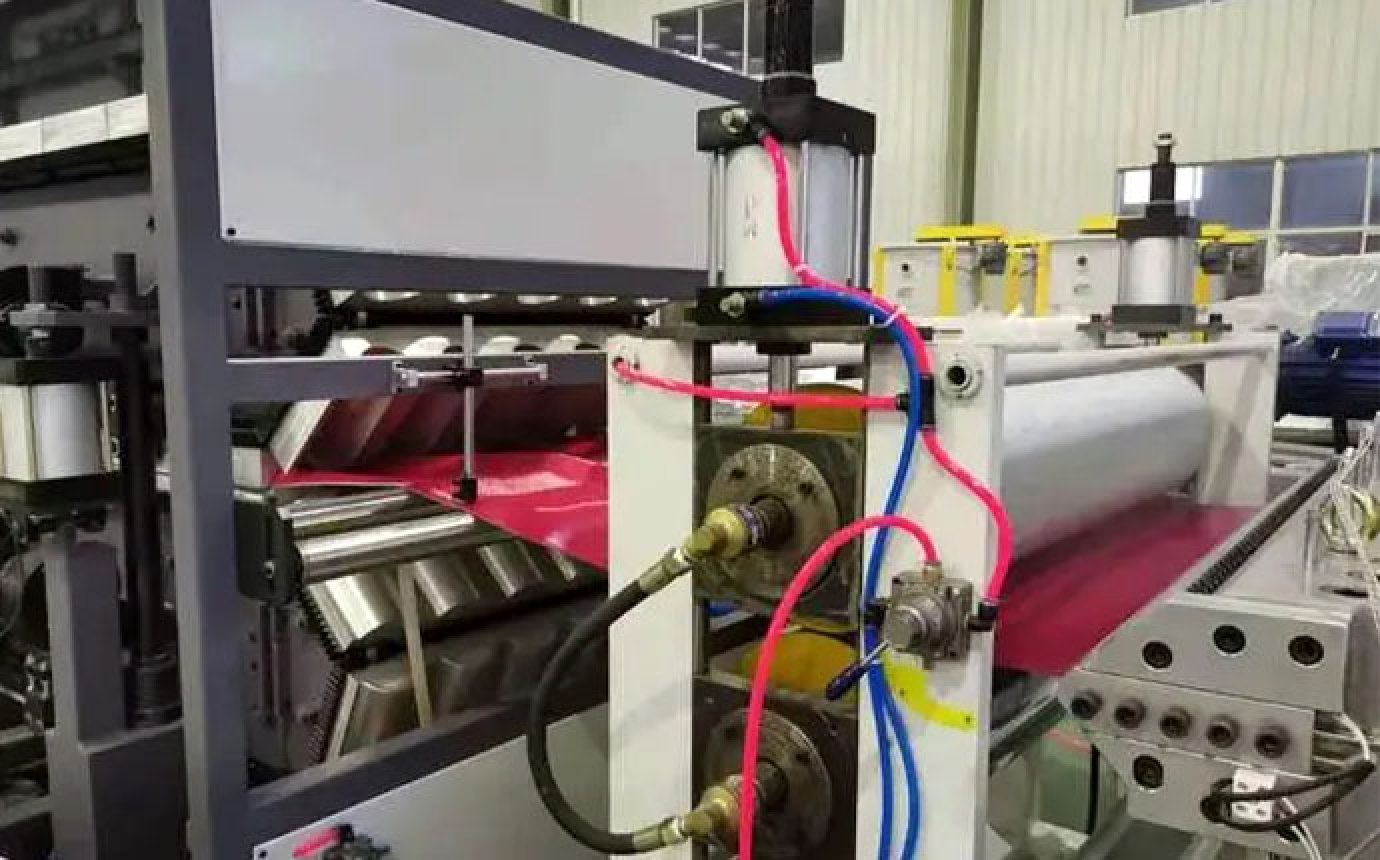

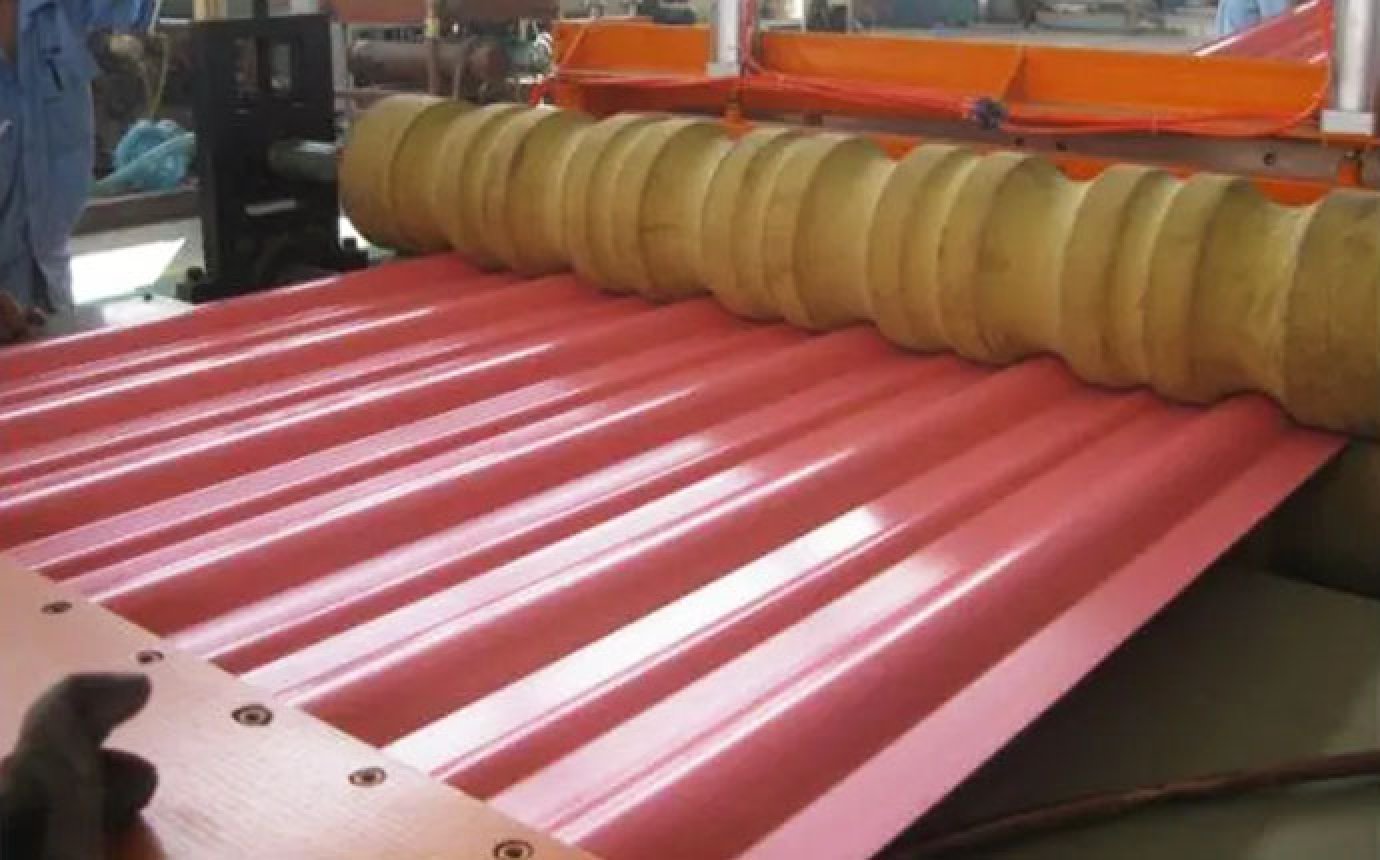

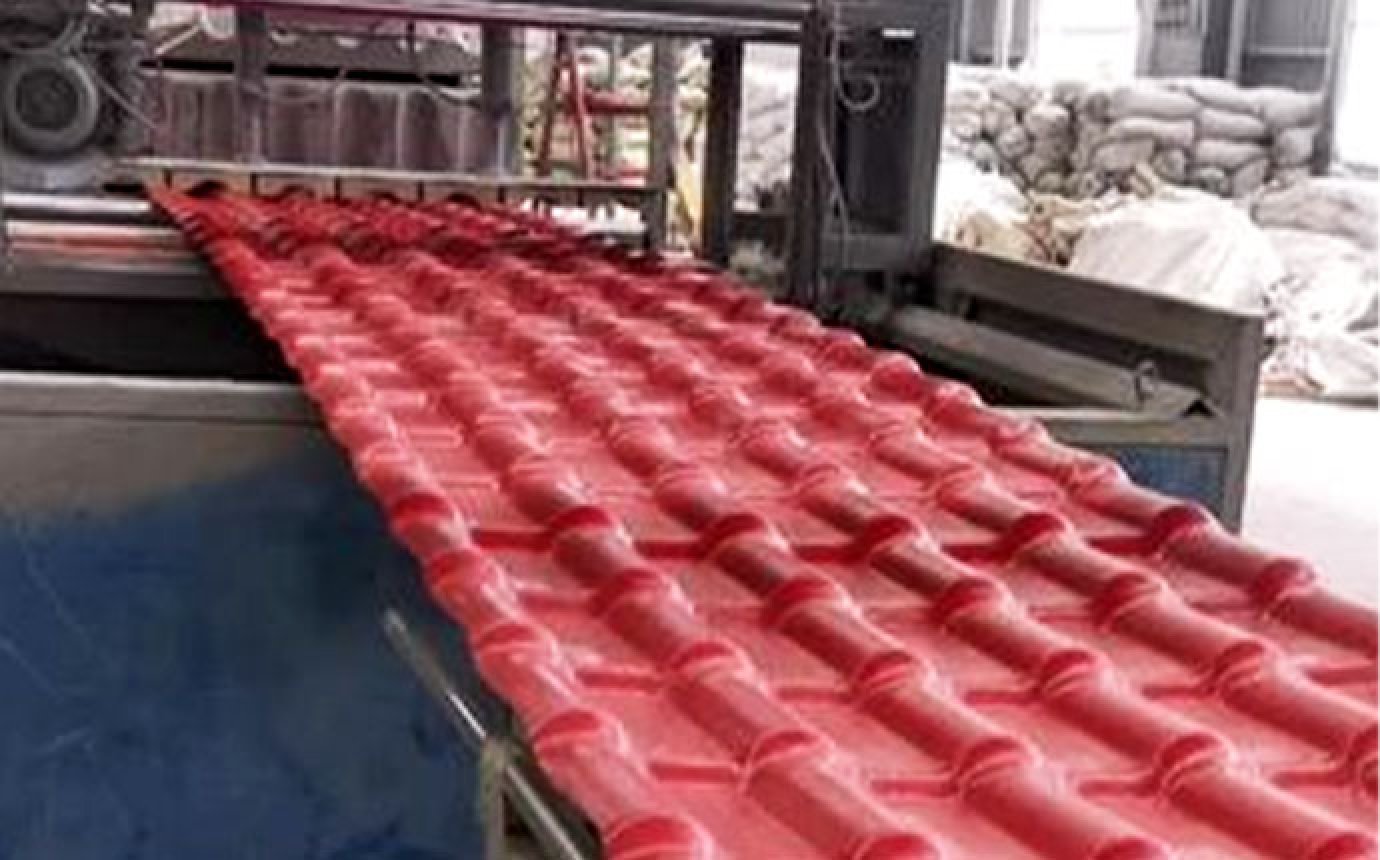

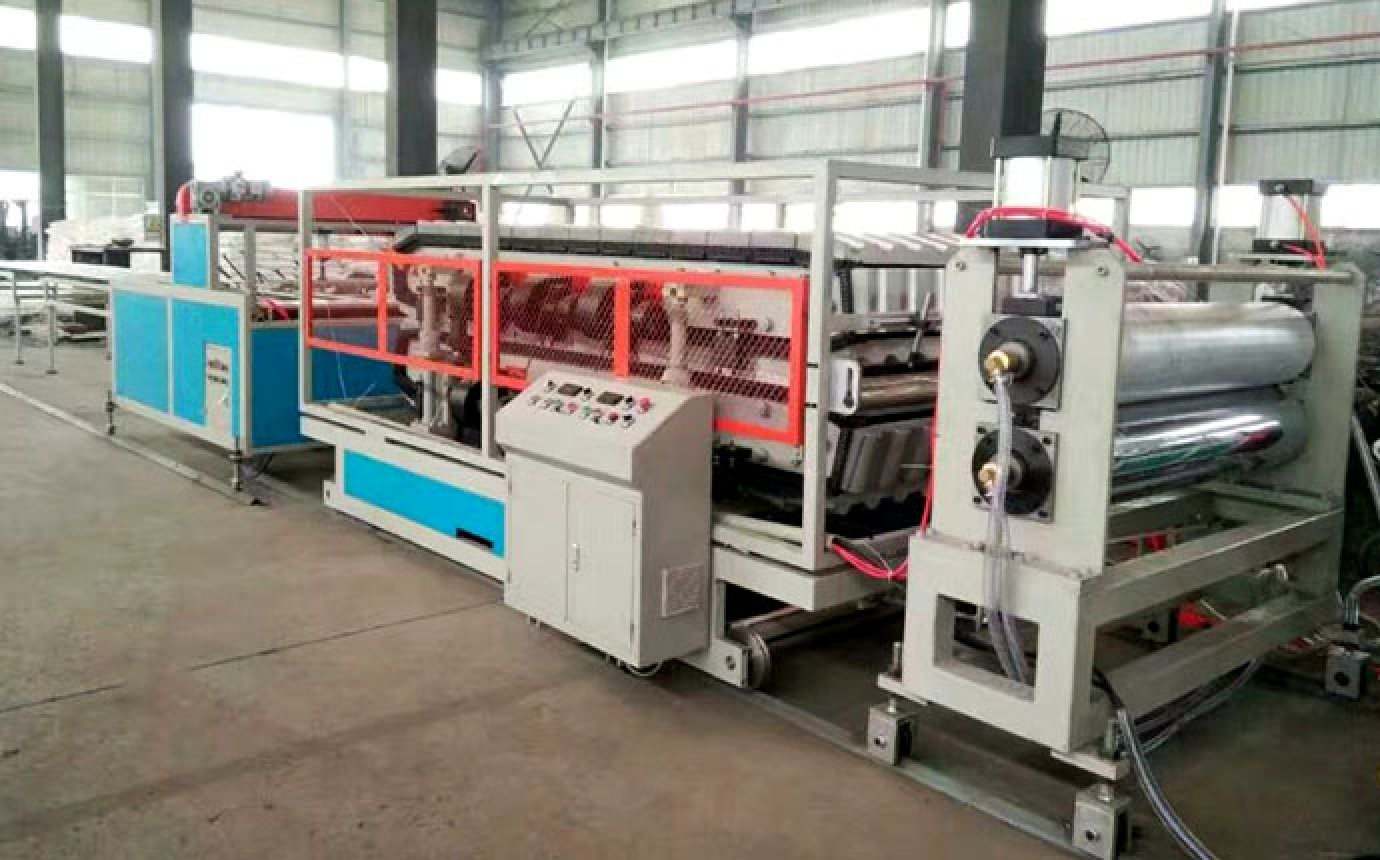

PVC resin tile production line with the corresponding molding mold ,can continuously produce a variety of waveform plastic tile ,the machine is composed of the host ,flat mold shaping ,traction ,cutting device,stacking device ,etc.
PVC advantages of resin tile production line : the adjustment of the thickness of the wave tile is very convenient ,the rubber traction roller,make the traction particularly stable ,inclined blade automatic cutting ,cut more smooth ,can cut according to the length on demand .
Inquire Now
Add to Inquiry Basket
PVC Resin Tile Production Line
Automated Manufacturing for Durable & Weatherproof PVC Roofing Tiles
Key Features:
High-Speed Extrusion: PLC-controlled twin-screw extruder (output: 800–1,500 kg/h).
Multi-Layer Structure: UV-resistant surface + foam core + reinforcement layer.
Precision Molding: Thickness 1.5–3.0mm, width 800–1300mm, customizable waveforms.
Eco-Friendly: Recyclable PVC, low energy consumption, RoHS compliant.
Applications:
Industrial/commercial roofing
Agricultural sheds, warehouses
Residential waterproofing
Certifications: CE, ISO, SGS | Warranty: 18-month service support.
