Plastic Machinery Auxiliary Machine

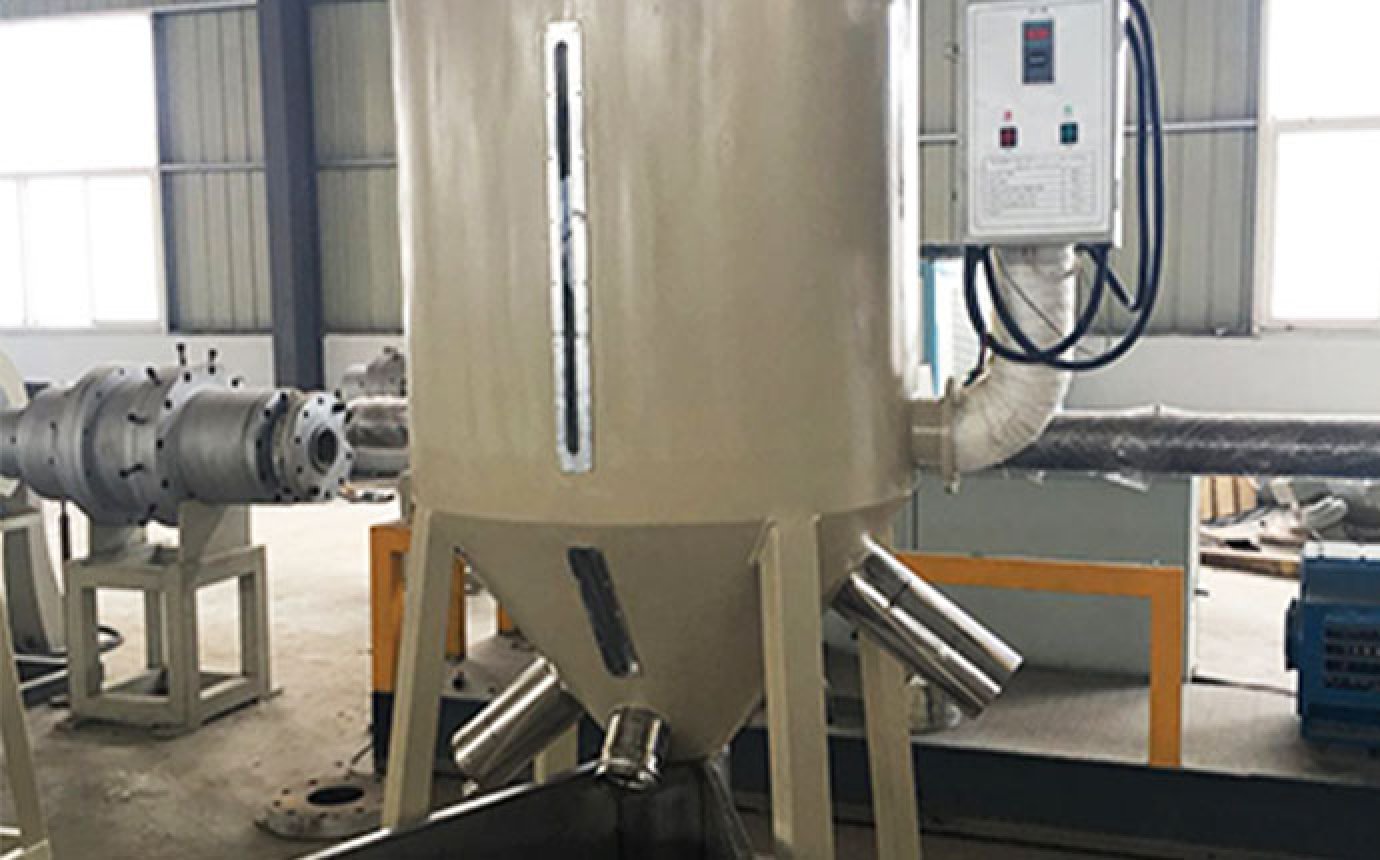

Drying feeding hopper ,lead screw material lifting screw ,cylinder ,discharge valve and other structures.
The working principle of screw mixing is used ,after starting the machine ,the stirred material goes from the feeding hopper of the inner spiral mixer into the vertical spiral conveyor through the lead screw ,after the mixture is lifted upward to the top of the barrel ,it then flies like an umbrella and falls around the mixing cylinder ,the material thrown from the top falls into the gap at the bottom of the mixer,and automatically enters the vertical spiral conveyor,and the material is lifted up and mixed again ,the raw materials are rolled up and down in the bucket ,and a large number of raw materials can be evenly mixed in a short time.
Inquire Now
Add to Inquiry Basket
1. Robust Structure & Components
Mixing Chamber
Material: 304/316 stainless steel (food-grade/corrosion-resistant), optional carbon steel with anti-corrosion coating.
Capacity: 50L to 5000L (customizable).
Design: Cylindrical/conical shape, mirror-polished interior (Ra ≤0.4μm) for zero residue.
Drive System
Motor: Variable frequency drive (VFD) motor (0.5-30kW), adjustable speed for torque optimization.
Transmission: Hardened gear reducer or cycloidal drive (≥95% efficiency).
Sealing: Mechanical/gas seal with IP65 rating to prevent dust leakage.
Mixing Blades
Types: Spiral, ploughshare, or butterfly blades (interchangeable).
Speed: 10-200 RPM (bidirectional rotation).
Material: Stainless steel or tungsten carbide-coated for extreme durability.
2. Precision Drying & Heating
Heating Options: Electric (resistance/ceramic), steam jacket, or thermal oil circulation.
Temperature Control: PID-regulated range from ambient to 300°C (±1°C accuracy).
Vacuum/N2 System: Vacuum drying (-0.09MPa) or nitrogen inertization to prevent oxidation.
3. Smart Automation
HMI Interface: 7-inch touchscreen for recipe presets, real-time monitoring (temp, RPM, humidity).
Data Logging: Stores 100+ process profiles; USB export for quality compliance.
Safety: Overload protection, emergency stop, auto-shutdown on overheating.
Technical Specifications
| Parameter | Details |
|---|---|
| Batch Capacity | 50kg - 5 Tons |
| Heating Power | 3kW - 50kW (model-dependent) |
| Mixing Torque | 100N·m - 5000N·m |
| Dimensions (L×W×H) | 1.5×1×2m to 5×3×4m |
| Noise Level | ≤75dB(A) |
| Energy Consumption | 0.5 - 25kWh per batch |
