Plastic Machinery Single Machine Equipment And Accessories

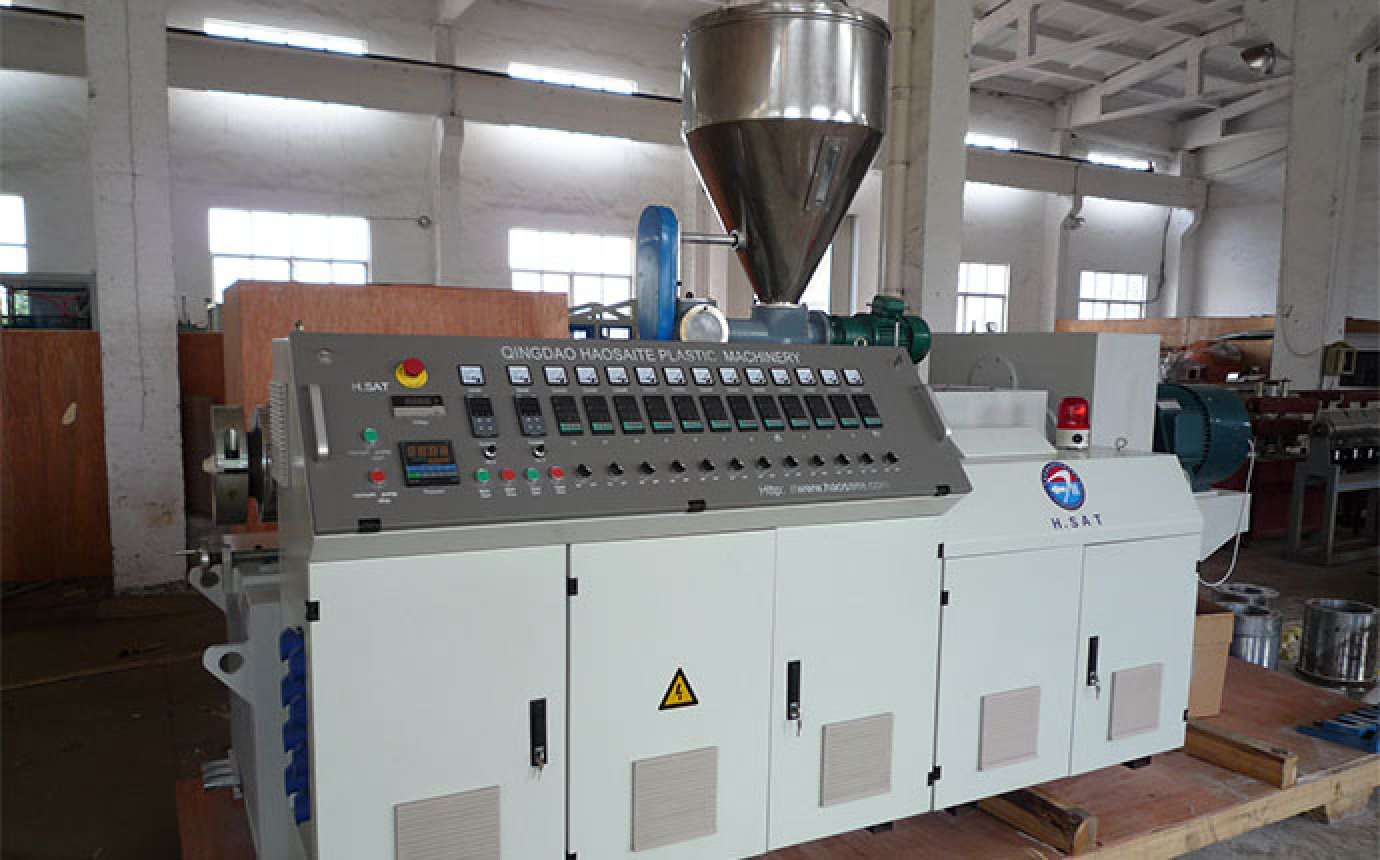

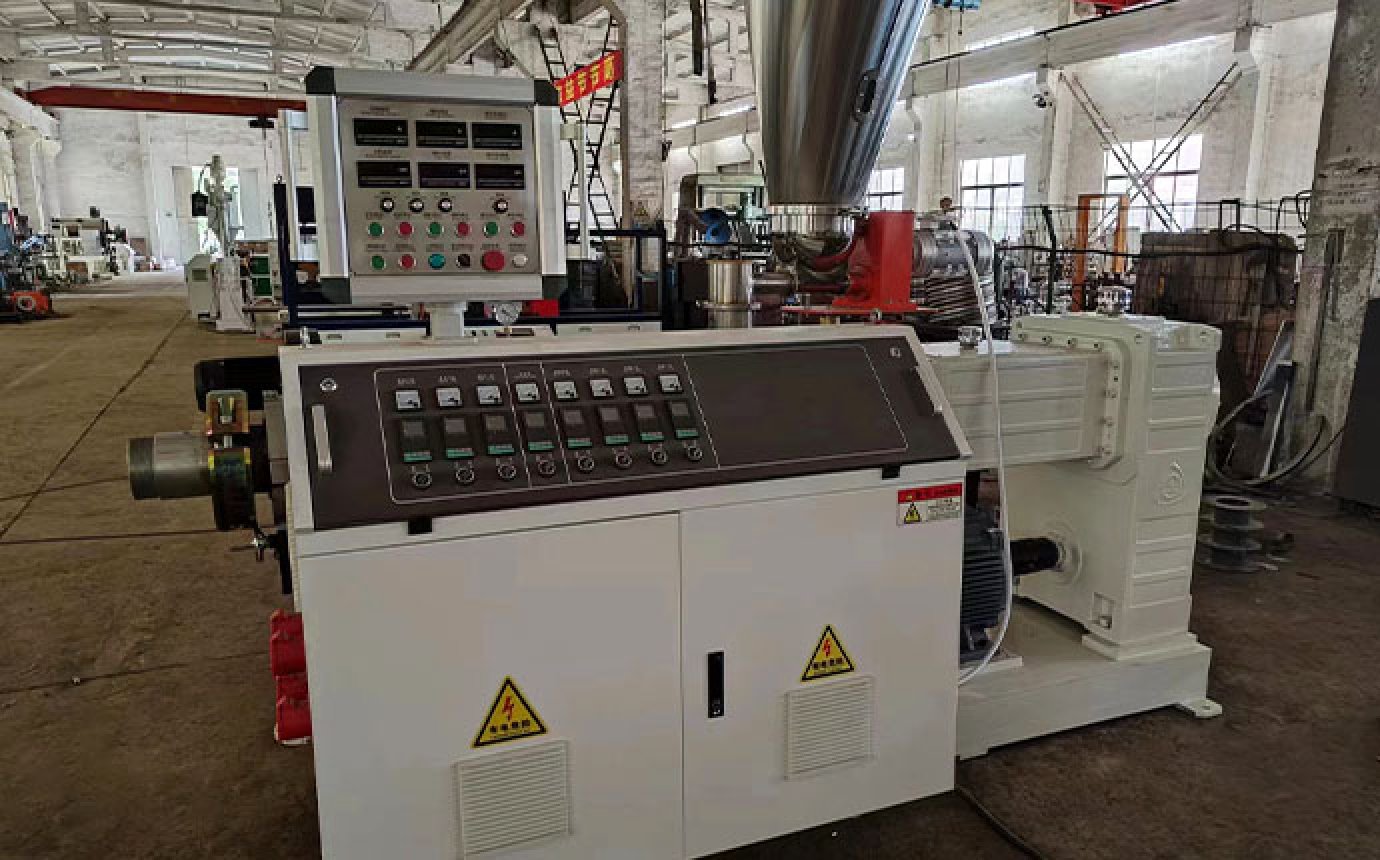

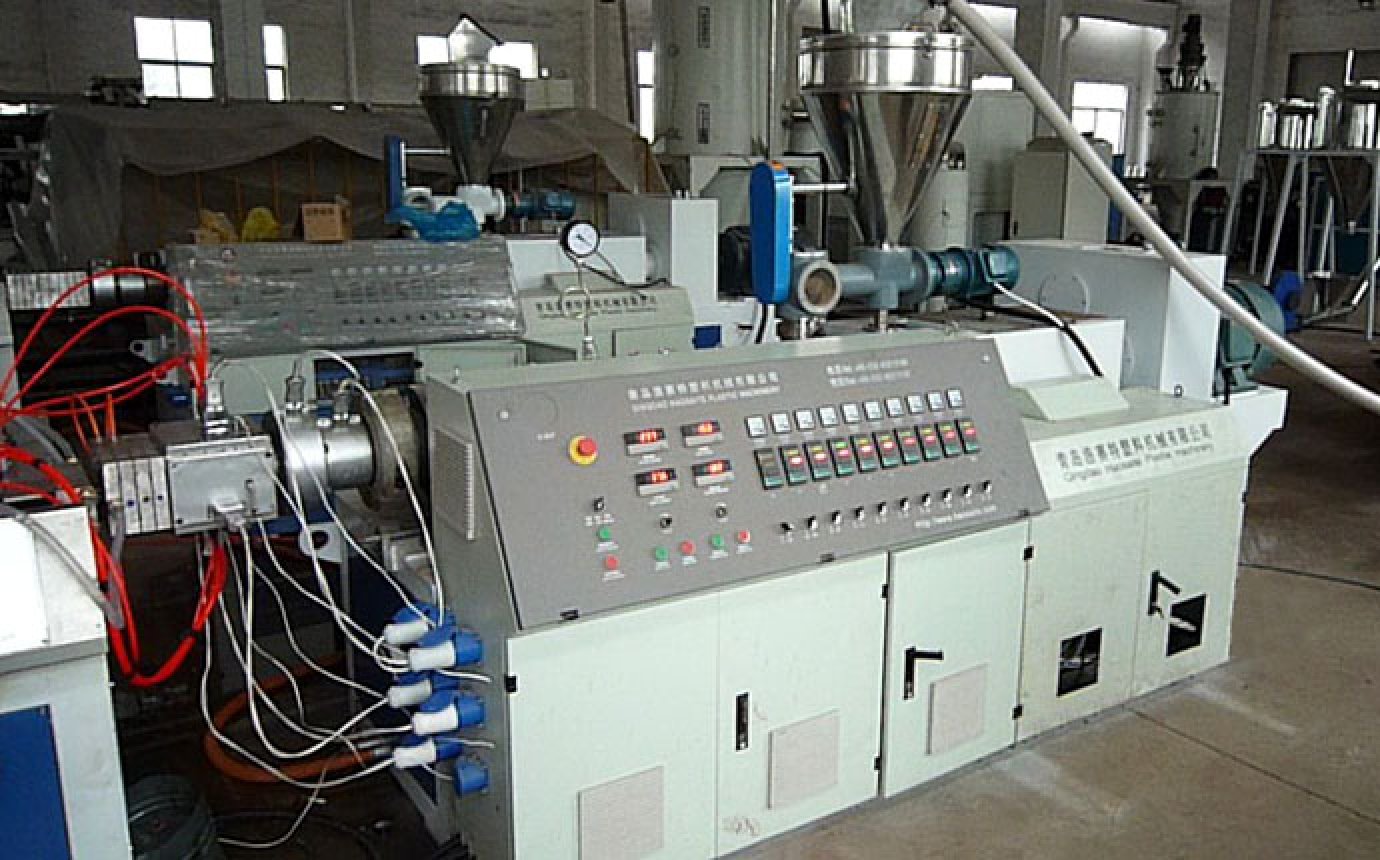

Double screw extuder is developed on the basis of single screw extruder ,because of its good feeding performance ,mixing and plasticizing performance ,exhaust performance ,extrusion stability and other characteristics ,has been widely used in the molding processing of extrusion products.
The double screw extruder is composed of several parts: transmission device ,feeding device ,material cylinder and screw.
Inquire Now
Add to Inquiry Basket
Product Detail：
Extruding system（screw and barrel）
Screw material: 38Cr MoLAlL
Screw diameter: ￠65mm, L/D: 132
Output: 120 ~ 220kg/h
Surface treatment: nitrogen treatment, nitrogen depth: 0.5~0.7mm, surface hardness: HV740~940
Barrel temperature control:
Heating: ceramic heater and stainless steel cover
Cooling: blower for cooling, to ensure precise temperature
Heating zones: 4zones, 21KW. Temperature range: 50-300 ℃ Blower: 3*0.55KW/set
spiral feeding system
model: ZJF300
MAX working capacity: 200-300KG/H
Rated working capacity: 150-200KG/H
Feeding distance: 3-5m
Material barrel volume: 120L
Silo volume: 150L
Motor power: 1.1KW
Power: 380V 50HZ]
Hopper material: stainless steel
vacuum exhausting system
vacuum exhausting, one set, vacuum pump power:3KW
3 phases synchronous motor
Vacuum degree: 0~-0.0075
conveying system
High torque gear box. Oil cooling lubrication system
Gear material: 20CrMoT, hard tooth surface, high-precision hard wearing treatment
e) Main motor
AC motor
Power: 37KW,380V,50Hz.
Frequency converting, ABB converter
Electric control System
proper design for electrical cabinet;
Smart digital display temperature controller
Wire connection is with good outlook and property;
