Plastic Recycling And Granulation Production Line
The common film materials are :PP,PE,BOPP,LDPE,LLDPE,HDPE,PA,PET.
the recycled film forms are :agricultural film [plastic film ]recovery ,shrinkage film recovery,printing film recovery ,packaging film recovery ,composite film recovery ,aluminized film recovery ,film screw recycling ,among which the market share of packaging film is getting bigger and bigger.
Inquire Now
Add to Inquiry Basket
Product Title
PP PE Plastic Film Recycling Line | Fully Automatic Film-to-Pellet System for LDPE/PP Waste
PP PE Film Recycling Line, Plastic Film Pelletizing Machine, LDPE Recycling Equipment
Product Overview
Our PP PE Plastic Film Recycling Line is a turnkey solution designed to efficiently convert post-consumer or industrial plastic film waste (LDPE, HDPE, PP) into high-quality reusable pellets. Ideal for recycling plants, packaging manufacturers, and sustainability-focused businesses, this system integrates shredding, washing, extrusion, and pelletizing technologies to maximize material recovery rates (up to 95%) while minimizing energy consumption. Compliant with global environmental standards (CE, ISO 14001) and adaptable to films with contaminants like labels or adhesives.
Key Features
Complete Film Recycling Process
Shredding → Friction Washing → Hot Washing → Dehydration → Extrusion → Pelletizing → Cooling.
Specialized design for thin films (<0.3mm) and woven bags.
High-Efficiency Cleaning
Multi-stage washing with friction scrubbers and cyclone separators for 99% impurity removal.
Optional electrostatic separator for printed films.
Energy-Saving Extrusion

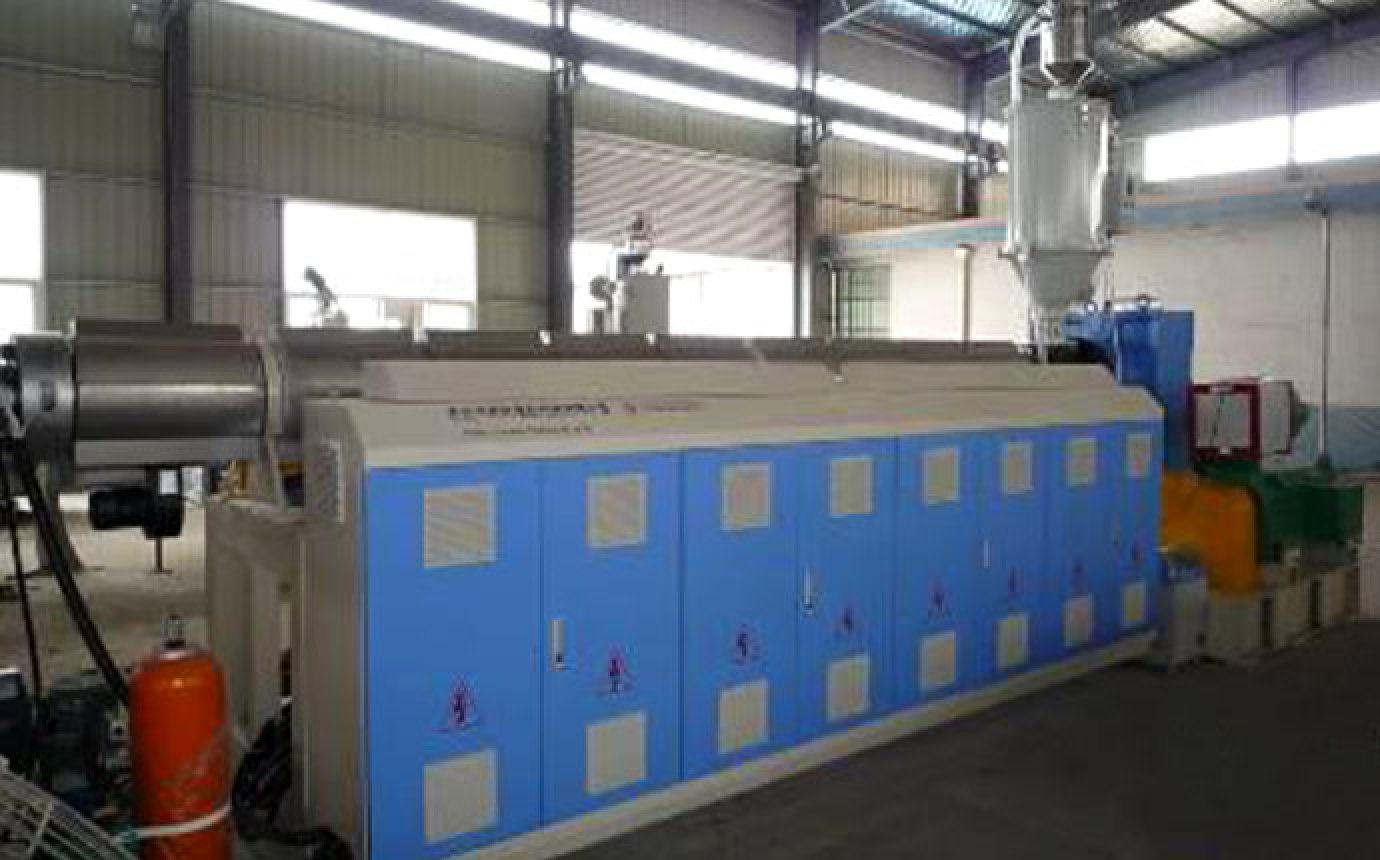

Twin-screw extruder with degassing vents to eliminate moisture and volatiles.
Automatic screen changers for continuous operation.
Smart Control System
PLC touchscreen interface for real-time monitoring of temperature, pressure, and throughput.
Energy consumption tracking and fault alarm system.
Technical Specifications
Input Material: LDPE/PP films, agricultural film, packaging bags, FIBC jumbo bags.
Output Capacity: 300-3000 kg/h (depending on material purity).
Pellet Size: 2-5 mm (adjustable die heads).
Power: 50-200 kW (energy recovery modules optional).
Certifications: CE, ISO 9001, ISO 14001, RoHS.
Applications
Recycling Facilities: Process post-consumer film waste into pellets for resale.
Packaging Manufacturers: Reuse in-house scrap for blow molding or film production.
Agriculture: Recycle greenhouse films and silage wraps.
Sustainability Projects: Support circular economy goals with closed-loop recycling.
Competitive Advantages
Low Maintenance: Hardened steel blades and modular design reduce downtime.
Eco-Friendly: Water circulation system cuts usage by 40%; noise <75 dB.
Global Support: 24/7 remote diagnostics and on-site installation teams.
