Plastic Recycling And Granulation Production Line
PET bottle crushing and cleaning equipment set crushing ,cleaning ,drying in noe,the appearance of the equipment is simple and elegant ,strong applicability,can be broken and cleaned mineral water bottles,coke bottles and other bottle material ,after crushing ,cleaning ,drying, heating plasticizing,drawing ,cooling ,granulation ,processing ,can be directly used as recycled materials.the equipment has the characteristic of low power consumption ,high quality of finished products and low cost.
Inquire Now
Add to Inquiry Basket
PET Bottle-to-Flake Recycling Line: Off-Label, Cleaning, Crushing & Drying
Transform dirty PET bottles into clean, market-ready flakes with our integrated line. Solve challenges like residual labels, oil stains, and moisture control.
Equipment composition :
number | Name | Parameter | remarks |

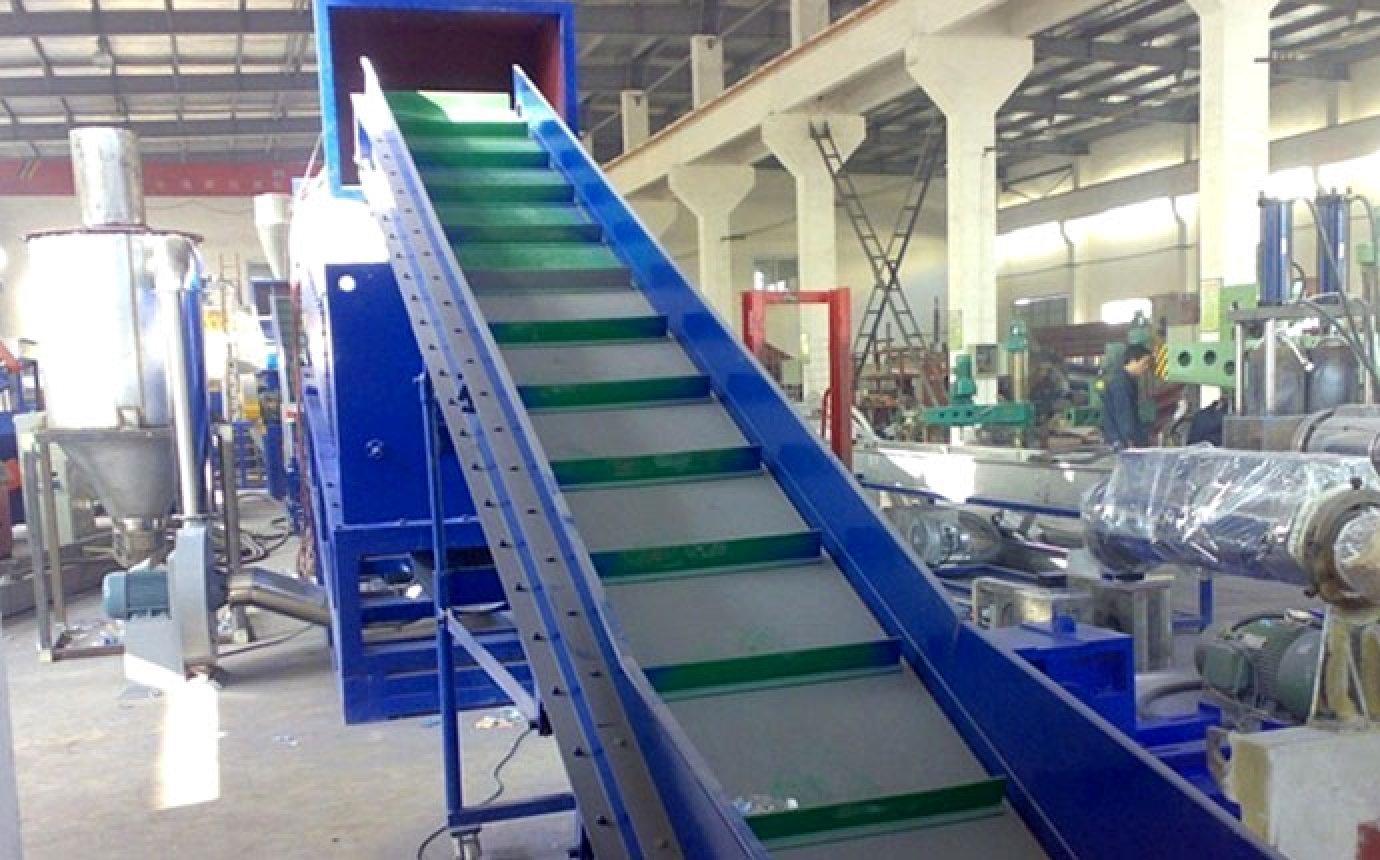

1 | Band conveyor | Length 4m，width 600mm，motor power 1.5kw | |
2 | Of-standard machine | Motor power 22kw，pump power 2.2kw | |
3 | Belt conveyor | Length 5m，width 800mm，motor power 1.5kw | |

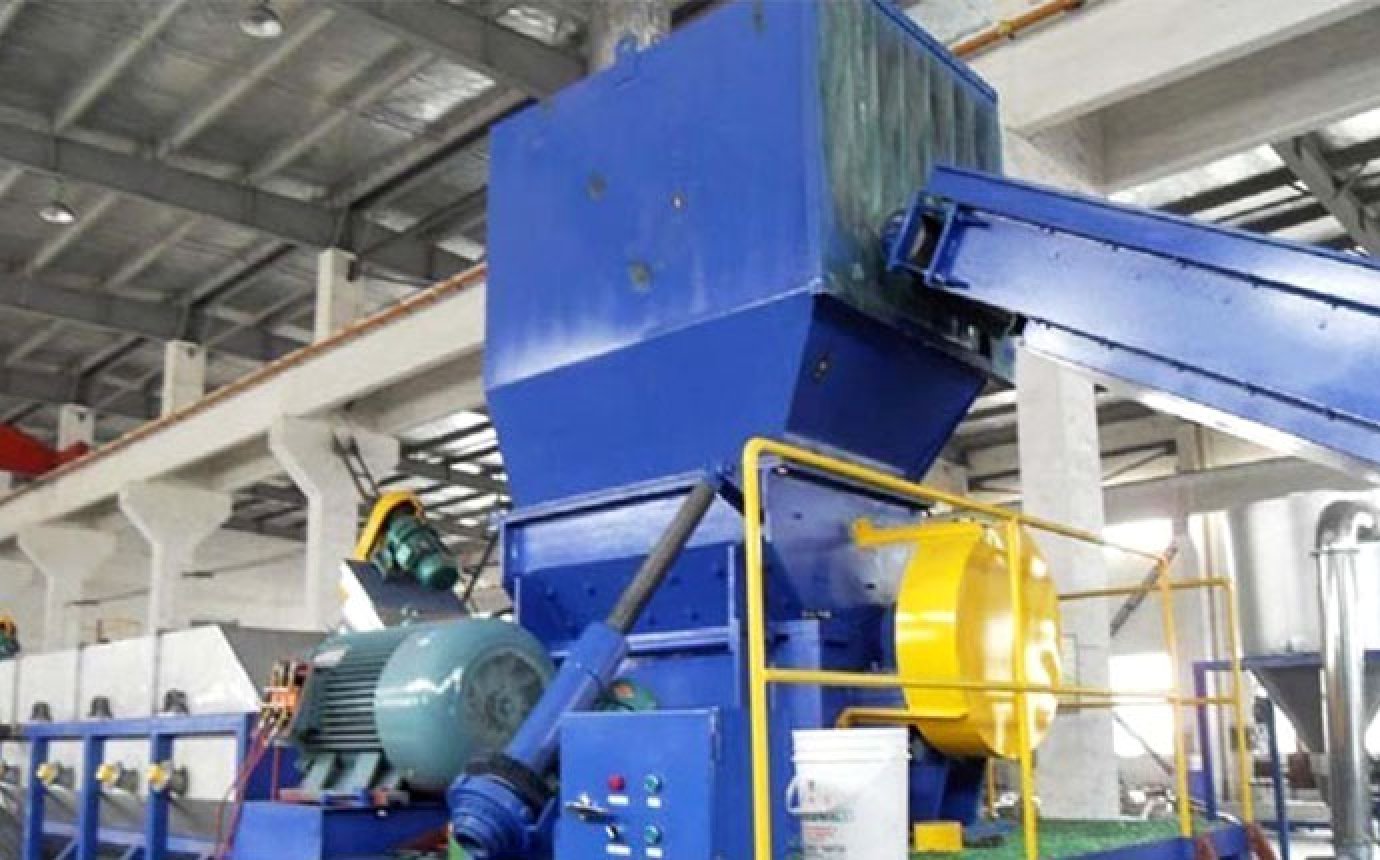

4 | Crusher | Shaft length of crushing tool：1000mm，motor power ：75kW | |
5 | Feed screw | Screw diameter φ250mm，motor power :2.2KW | |

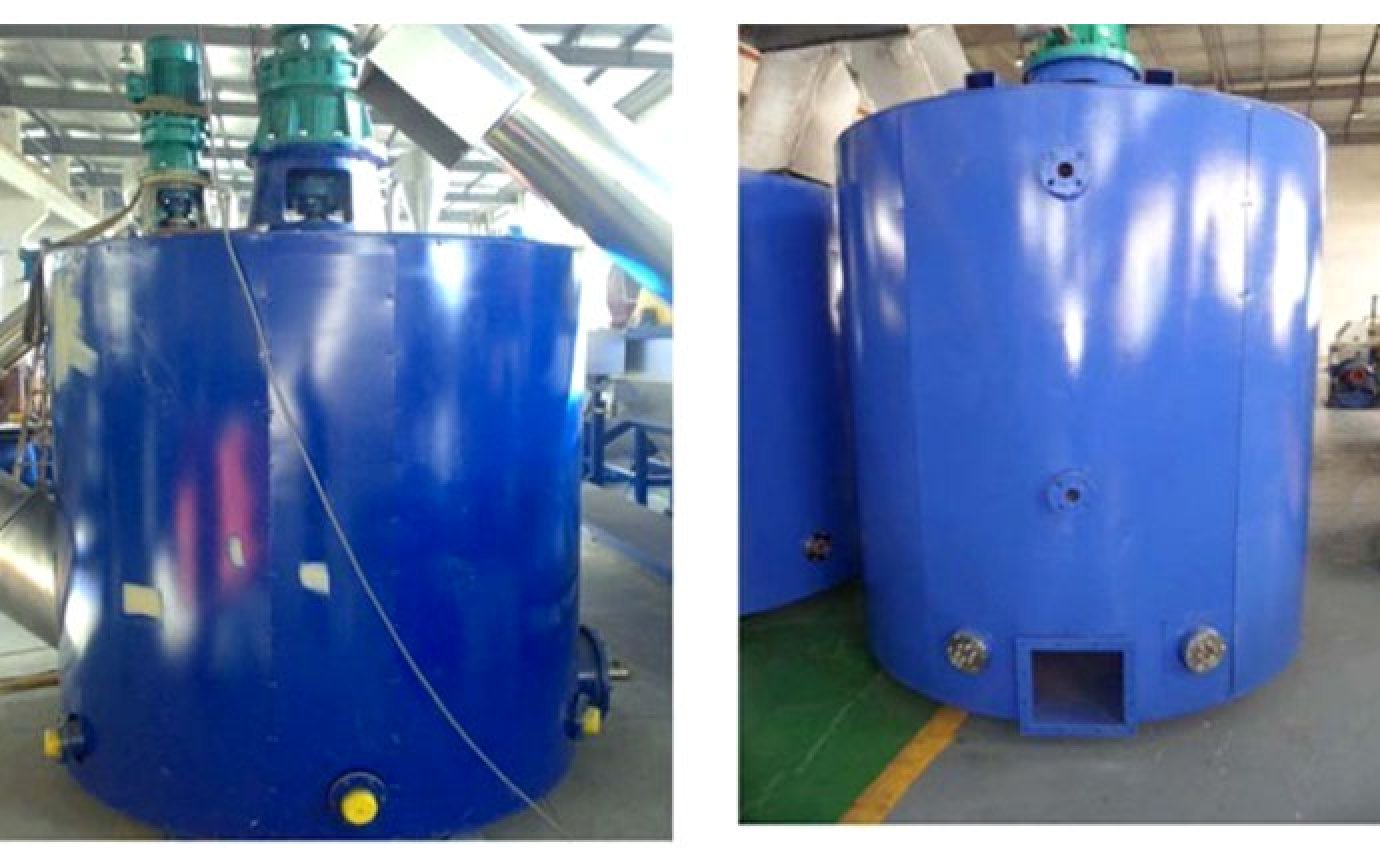

6 | Hot cleaning machine | Stirring motor power 5.5KW，tube diameter :1200mm | |
7 | Feed screw | Screw diameter:φ250mm，motor power :2.2KW | |
8 | high speed friction cleaning machine | Motor power :18.5kw， Rotor diameter : 330mm | |
9 | Feed screw | Screw diameter:φ250mm，motor power :2.2KW | |
10 | Single screw rinsing machine | Screw diameter:φ250mm，motor power:3KW | |
11 | Single screw rinsing machine | Screw diameter:φ250mm，motor power :3KW | |
12 | Vertical dehydrator | Motor power :5.5KW，rotor diameter:300mm | |
13 | Wind to dry system | Fan power :5.5kw，heating power :36kw | |
14 | Cyclone material warehouse | Storage volume :1000L | |
15 | Electrical equipment | Siemens electrical components ，delta frequency converter. |
