Plastic Pipe Production Line
The PVC wire hose production line is used to produce plastic hoses that are embedded with steel wire skeleton. The use temperature is -10 to +65 degrees. Its products have the characteristics of light quality, transparency, and good weather resistance.
Inquire Now
Add to Inquiry Basket

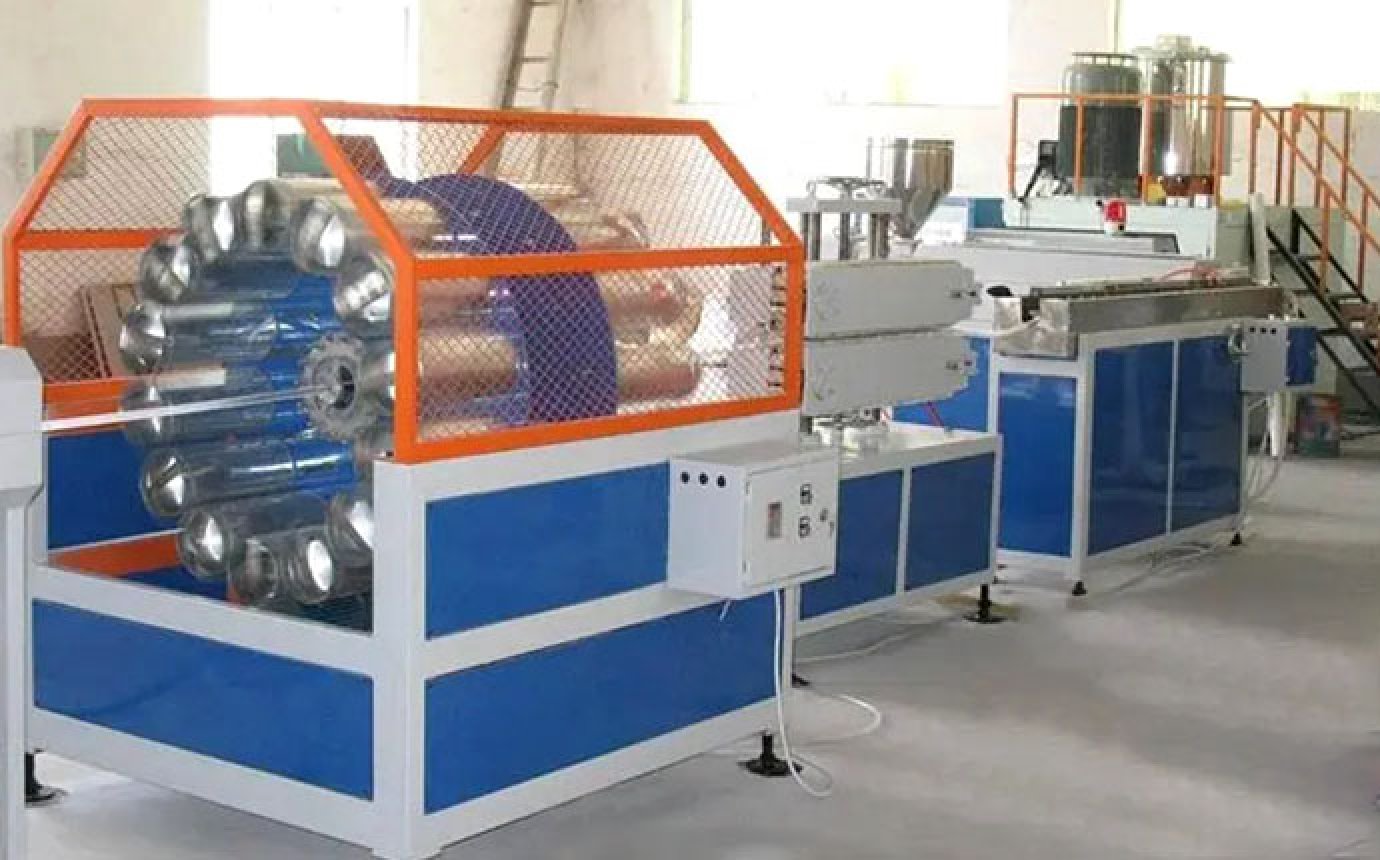

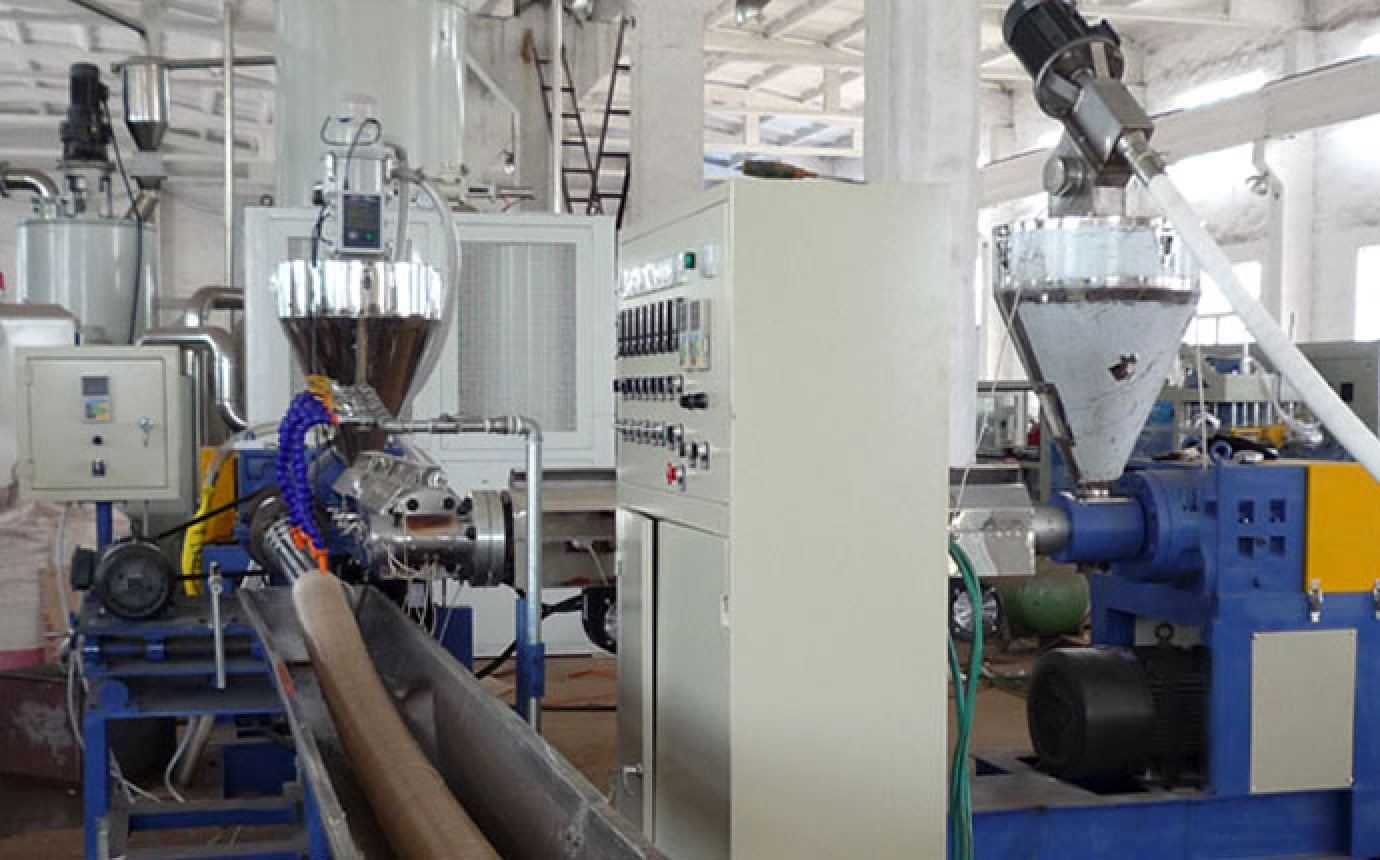

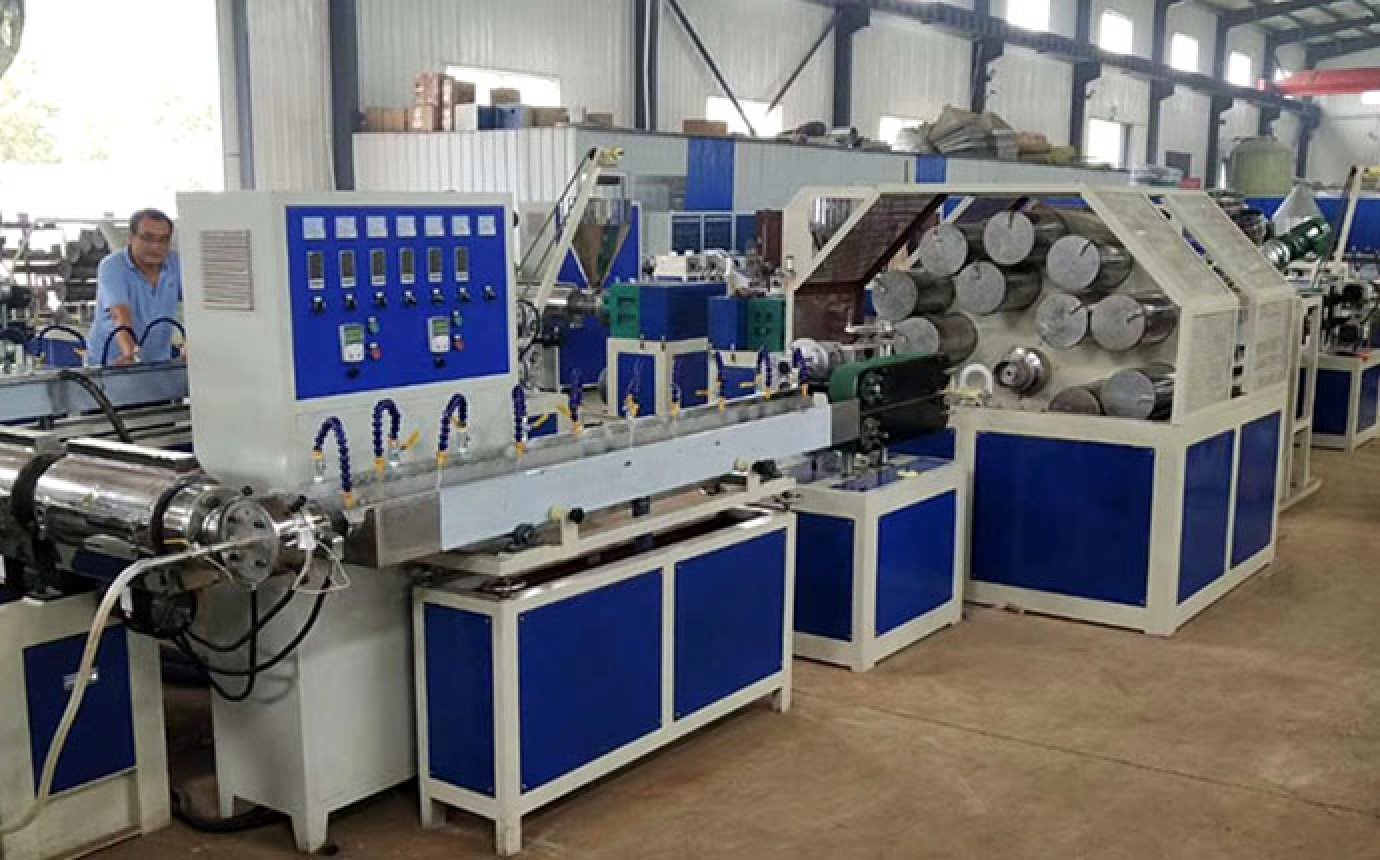

Production line composition:
1. Single screw extruder: SJ65/28
2. Play head: 16, 20, 25mm

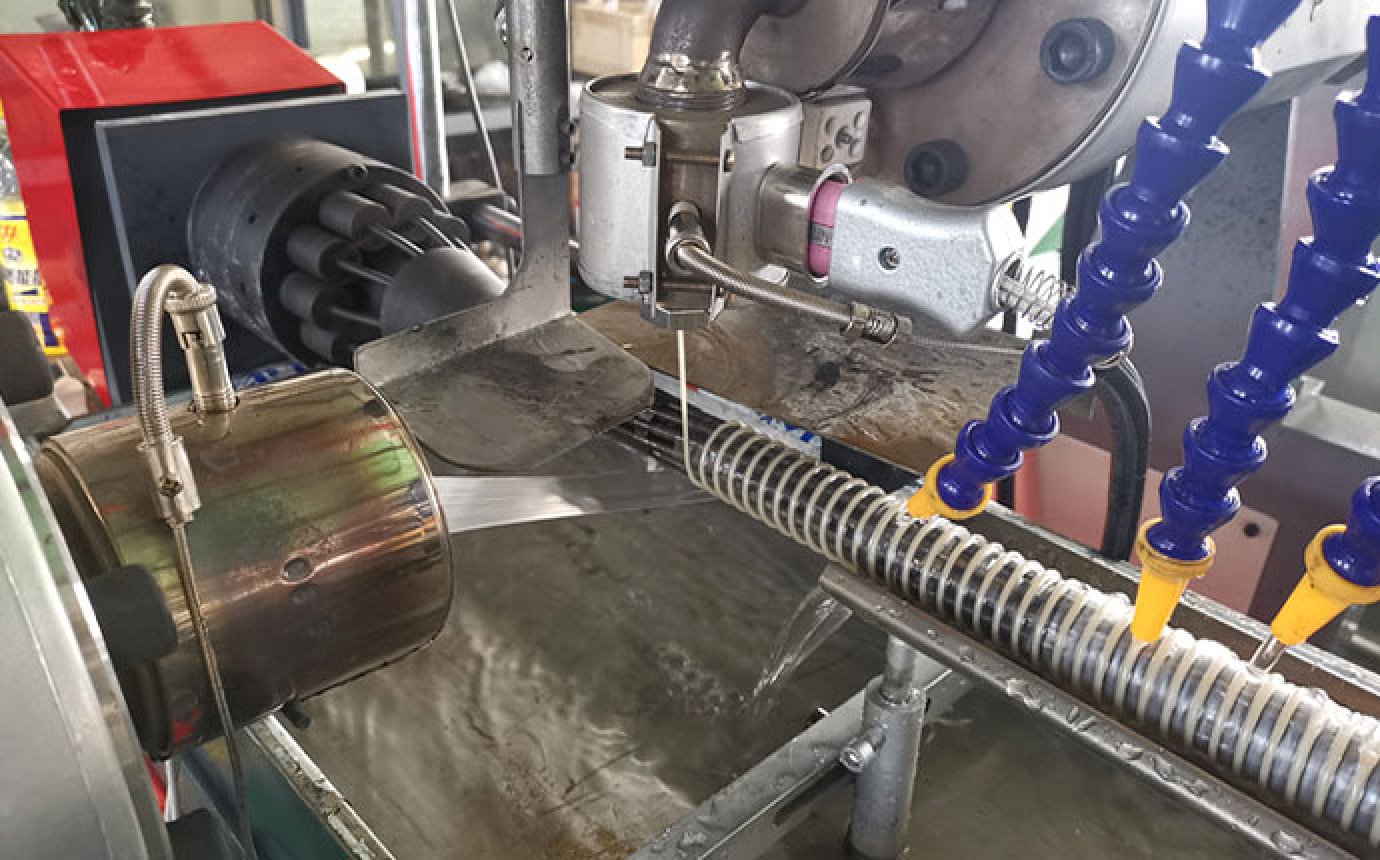

3. Spiral steel wire forming machine
4. Cooling slot
5. Tractioner
6. Rolling machine
7. Electrical control system
PVC Wire Hose Production Line
Automated Manufacturing System for Flexible Conduits & Cable Protection Solutions
Product Overview
The PVC Wire Hose Production Line is a fully integrated solution designed to produce high-quality, flexible PVC conduits for electrical wiring, automotive harnesses, and industrial cable protection. Utilizing advanced extrusion, spiral reinforcement embedding, and precision cooling technologies, this line ensures durable, flame-retardant, and UV-resistant hose production with consistent performance.
Key Features
High-Speed Extrusion: Processes PVC, PVC/TPU blends at speeds up to 20–50 meters/minute (adjustable based on hose diameter).
Spiral Reinforcement: Optional steel wire or nylon thread coiling for enhanced tensile strength (up to 150N/mm²).
Precision Control: PLC + HMI interface monitors extrusion thickness, cooling rate, and winding tension in real-time.
Energy Efficiency: Servo-driven systems reduce power consumption by 30% compared to traditional lines.
Multi-Layer Capability: Co-extrusion modules for anti-static or oil-resistant surface layers.
Technical Specifications
Hose Diameter: 5mm–50mm (customizable)
Wall Thickness: 0.5mm–3.0mm (±0.1mm tolerance)
Material: PVC, PVC/TPU, RoHS-compliant additives
Power Supply: 380V/50Hz (configurable to 220V/60Hz)
Output Capacity: 800–3,000 kg/day
Advantages
✅ Superior Durability: Flame-retardant (UL94 V-0) and IP67 waterproof ratings.
✅ Cost Efficiency: Automated cutting and coiling reduce labor costs by 40%.
✅ Flexibility: Produces smooth, corrugated, or ribbed surface designs.
✅ Low Maintenance: Tool-free mold changes and self-cleaning extruder screws.
Applications
Electrical wiring in construction & machinery
Automotive cable harness protection
Industrial robot cable management
Solar panel junction boxes
Certifications
CE, ISO 9001, RoHS, and compliant with IEC 61386 (conduit standards).
Support Services
On-site installation & operator training.
24/7 technical support & lifetime spare parts supply.
Custom solutions for colored hoses or RFID tagging integration.
