EVA water stop belt is used to seal the construction joint and expansion joint of the concrete structure. Various specifications are available according to the use

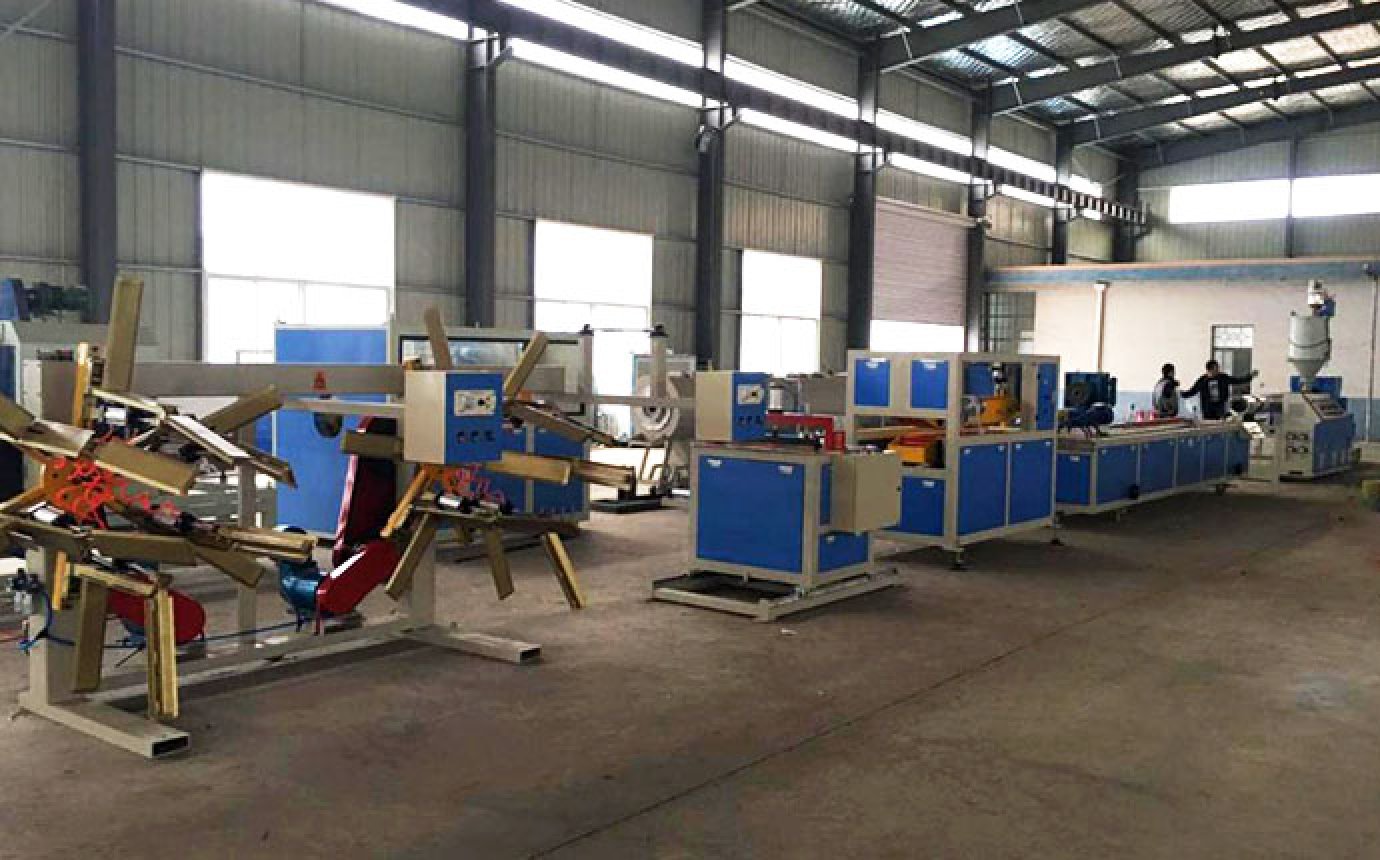

Equipment composition :

1. HST 90/30 single screw extruder     1 set

2. Extrusion the mold                  1set

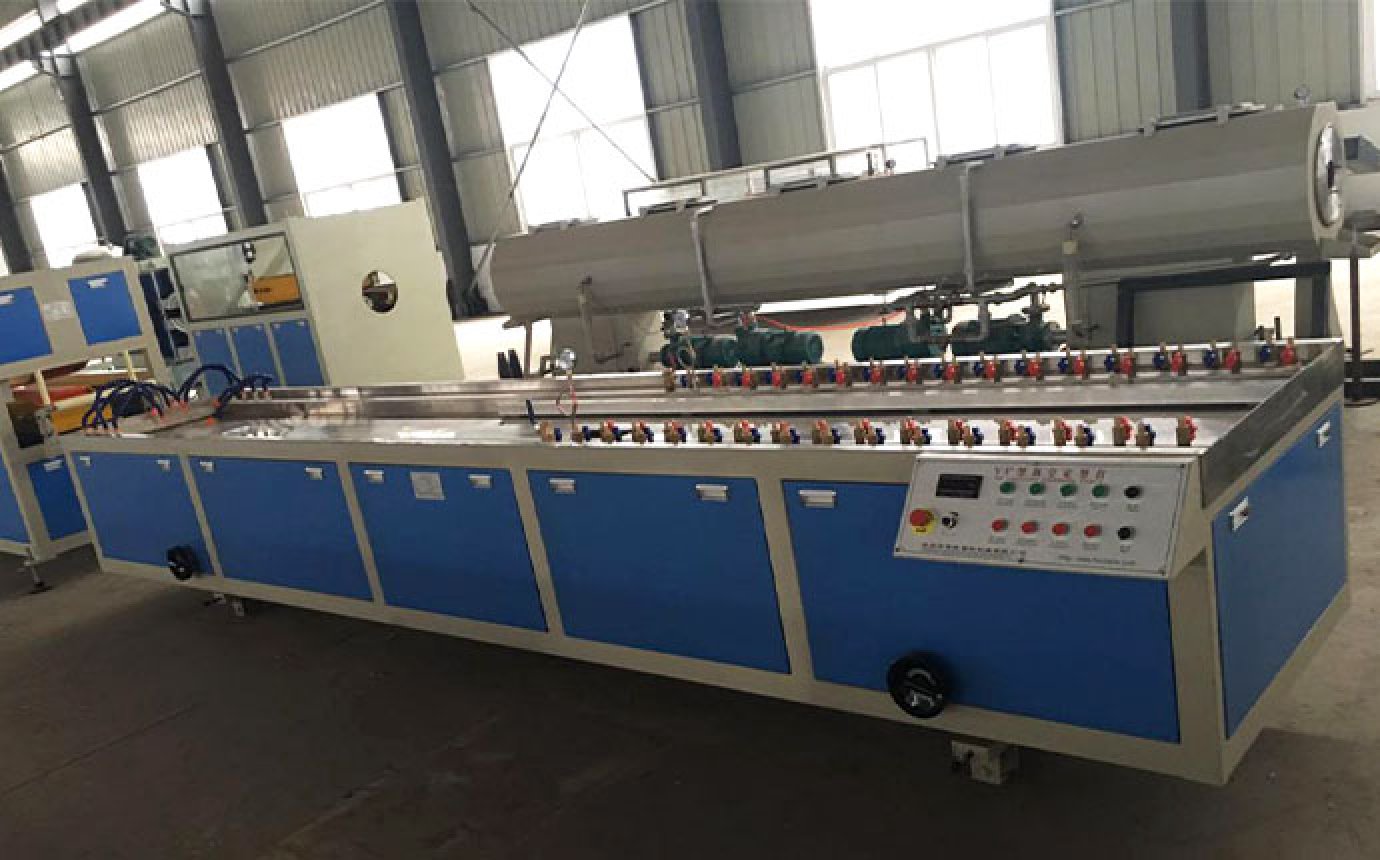

3. HST 500 finalize the platform        1set

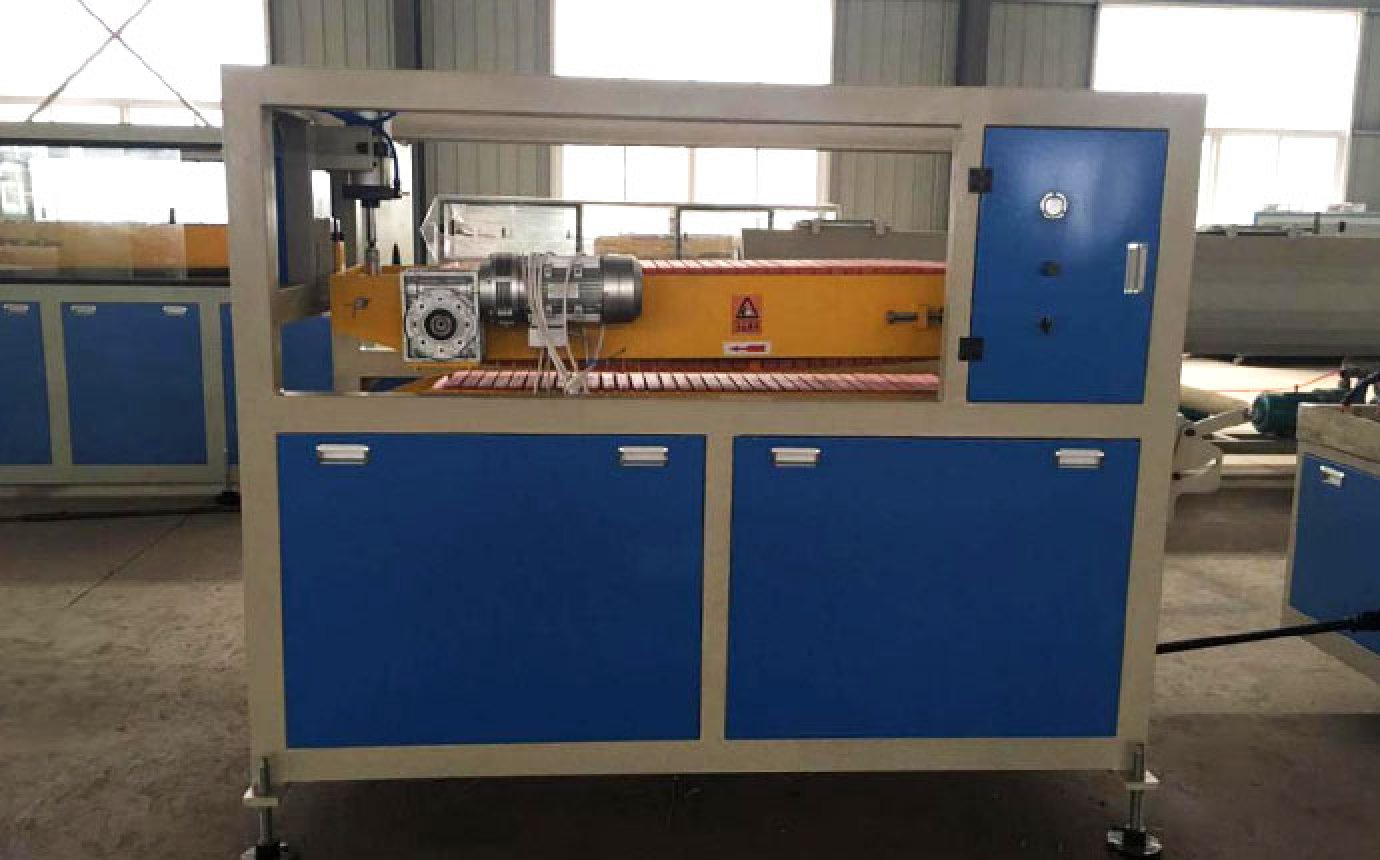

4. HST 500 traction engine          1set

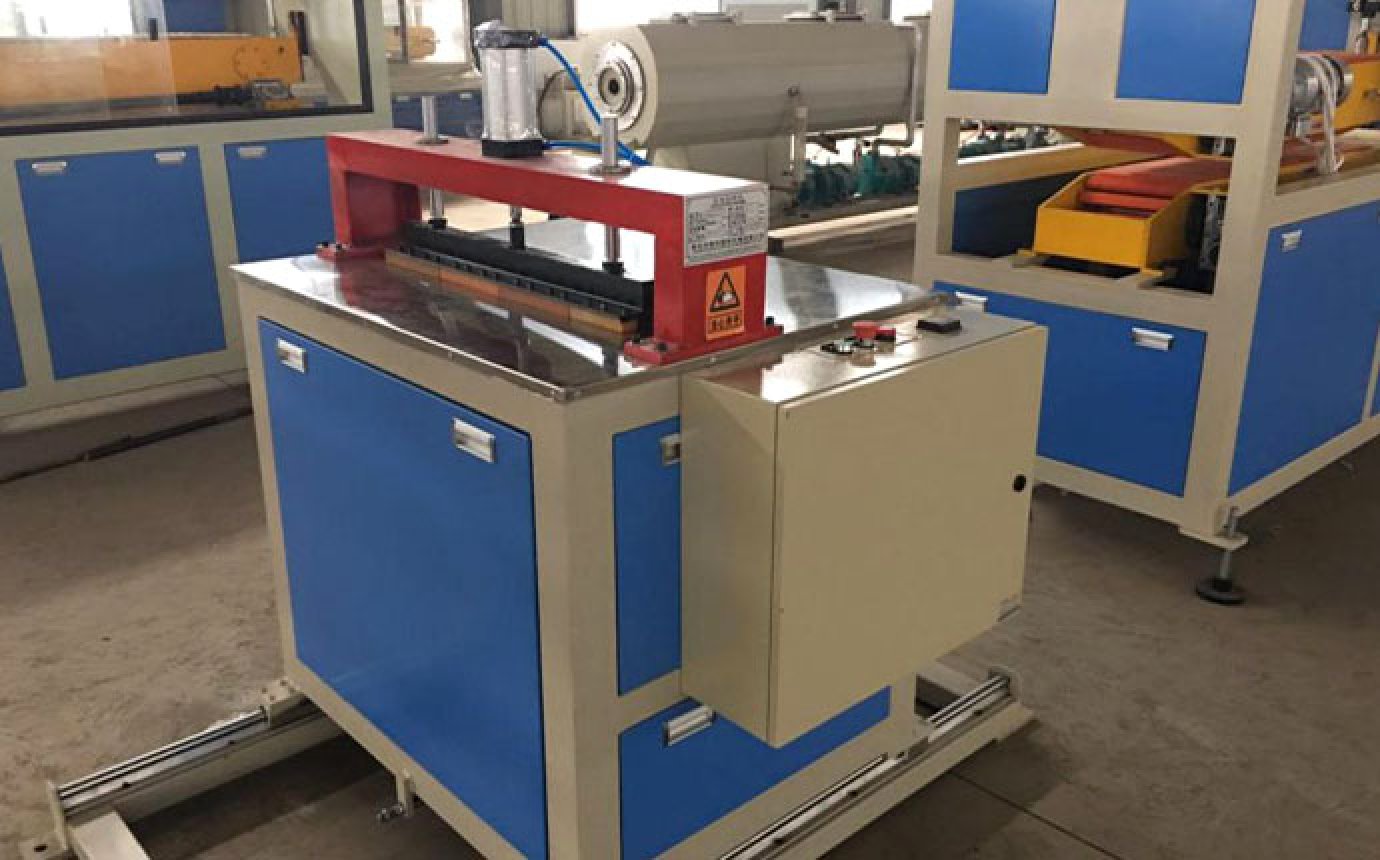

5. HST 500 cutting machine [with meter ,device ]    1set

6. HST 500 double station automatic winder      1set

Water stop belt products are widely used in the ground or underground buildings ,such as reservoirs ,sewage pond ,DAMS ,subway ,tunnel water retaining wall ,etc.

Product Name: EVA Water Stop Production Line
Application: Designed for manufacturing EVA (Ethylene Vinyl Acetate) water stops used in construction joints of tunnels, dams, bridges, and underground structures to prevent water leakage.

Key Features

• High-Precision Extrusion: Produces uniform EVA water stop strips with adjustable profiles (ribbed, flat, or custom shapes) and thickness (5–30mm).

• Automated Process: Integrated system for material feeding → extrusion → cooling → cutting → winding.

• Material Flexibility: Compatible with EVA, rubber blends, and anti-aging/UV-resistant additives.

• Energy Efficiency: Optimized screw extruder reduces power consumption by 15–20%.

• Durability: Ensures water stops resist hydrostatic pressure, chemicals, and temperature extremes (-30°C to 80°C).

Technical Specifications

• Output: 100–300 kg/hour

• Power: 50–150 kW

• Production Speed: 5–15 meters/minute

• Width/Thickness: Customizable (e.g., 200–600mm width, 5–30mm thickness).

• Automation: PLC-controlled with touchscreen interface.
