Plastic Sheet Production Line
The cap tongue production line is also known as the brim production line.the product raw material is PE ,the first half of the production line is the first half of the production line is the same as the plastic sheet production line .the second half is equipped with traction concave and convex roller,flat roller traction,automatic punch equipment and corner winding device.
The whole production line from raw materials to the single cap along the integrated molding, cut the remaining material ,can be equipped with crusher,recycling ,so as to reduce the cost.
Can be customized according to the needs : one out one ,one out two,one out three ,single layer,double layer and three layer co-extrusion cap tongue equipment.
Inquire Now
Add to Inquiry Basket
ABA three-layer hat sheet extrusion line (one output three)
Core Features:
High-Speed Stamping: 600-ton servo presses with rapid die-swap (SMED <8min) for multi-layer cap-tongue sheets.
Robotic Handling: 6-axis robots (Fanuc/KUKA) automate sheet feeding, stacking, and packaging, achieving 60 cycles/minute.
Surface Treatment: Integrated plasma cleaning and anti-corrosion coating systems for food-grade and industrial applications.
Smart Quality Assurance:
3D laser scanners detect micro-cracks, burrs, and thickness deviations (resolution: 0.01mm).
Real-time IoT monitoring reduces scrap rates to <0.5%.

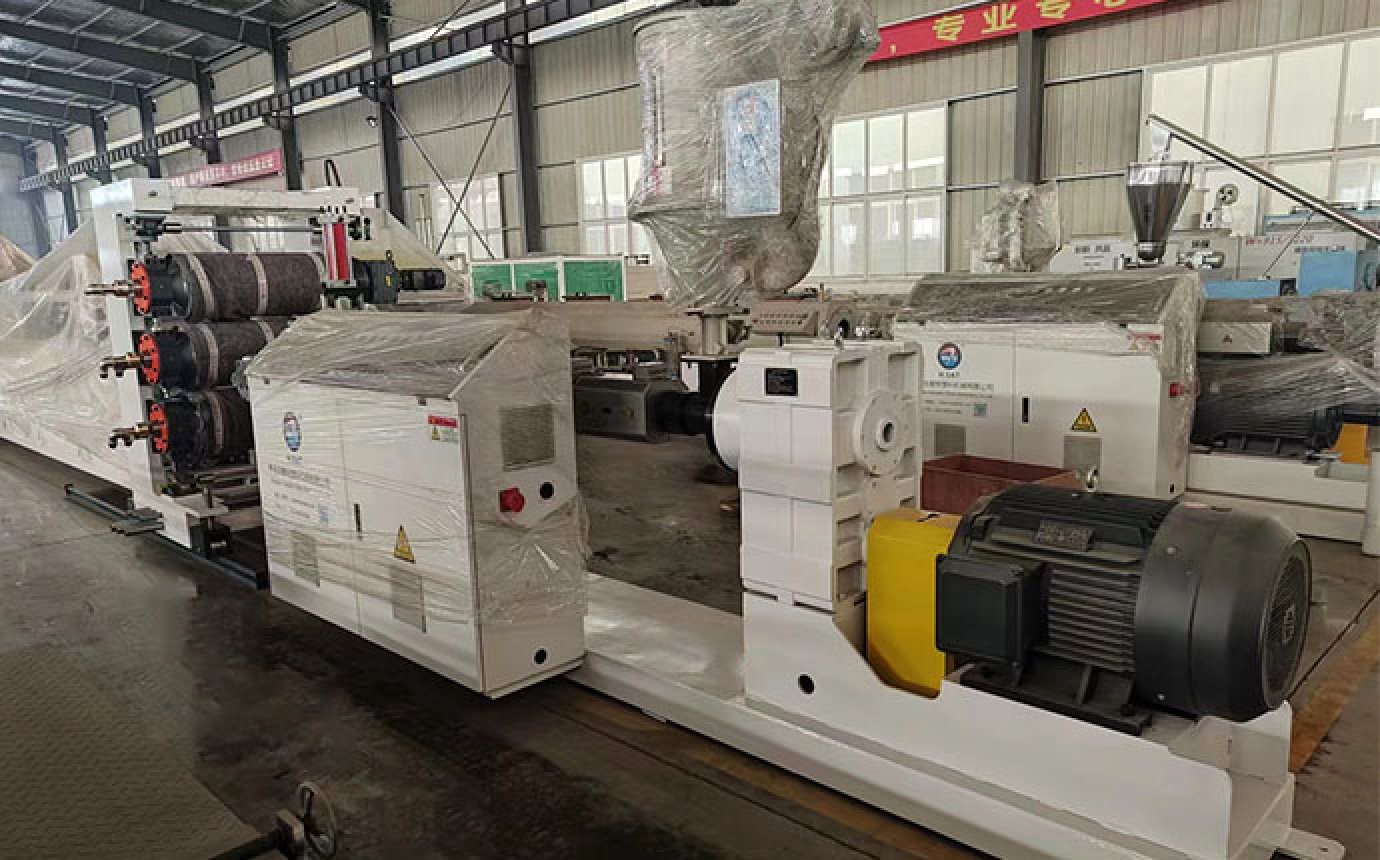

1 | SJ90/30单螺杆挤出机 SJ90/30 single screw extruder | 1 台 1 set |
SJ65/30单螺杆挤出机 SJ65/30 single screw extruder | 1台 1set | |
2 | 换网器screen exchanger | 1 台 1 set |

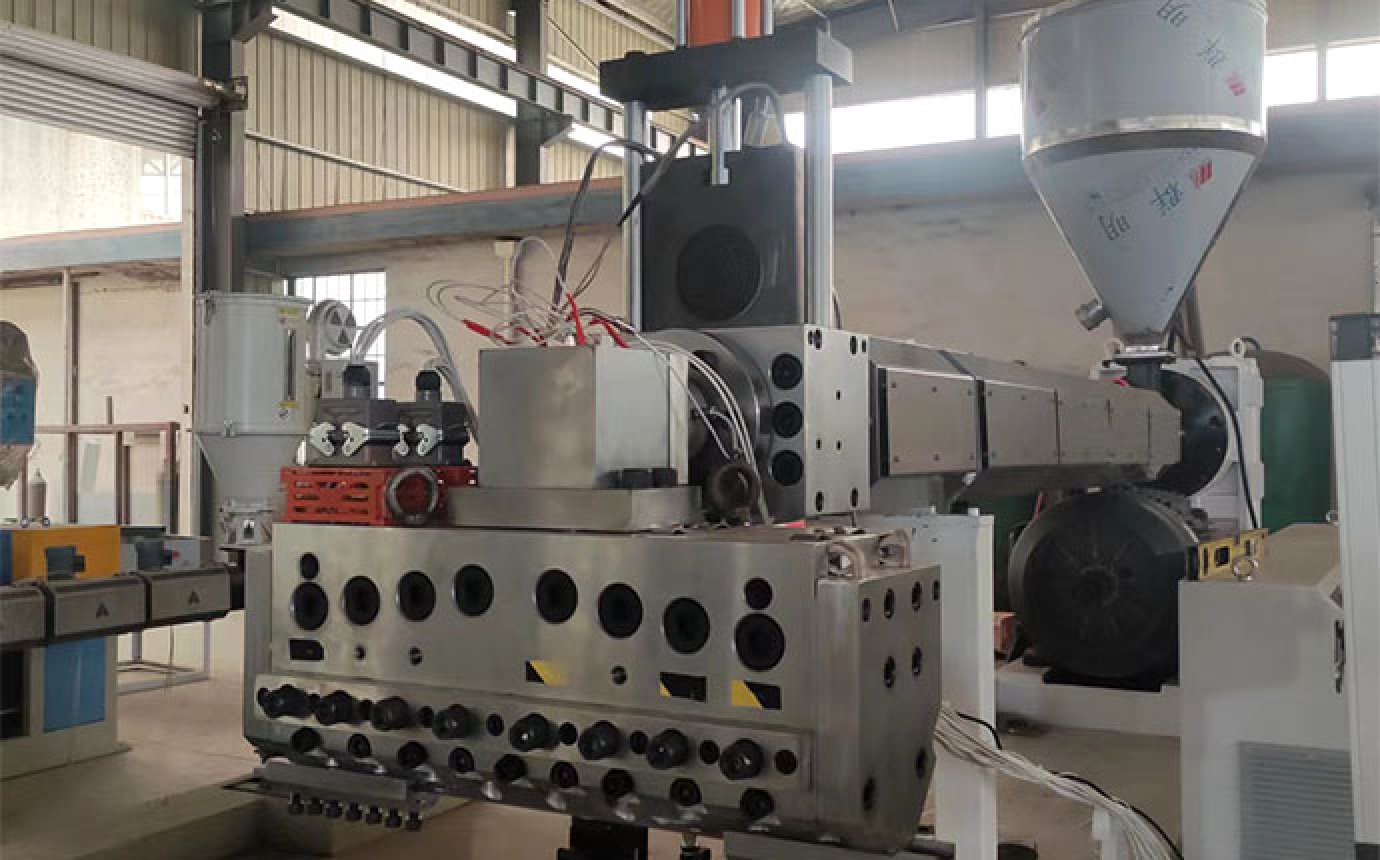

3 | 模具Mould | 1 台 1 set |
4 | 三辊压光机Three-roller calender | 1 台 1 set |
5 | 加强型水辊温控制器 Reinforced water roll temperature controller | 1 套 1 set(series) |
6 | 切边装置Cutting sides device | 1 套 1 set(series) |
7 | 冷却辊组Cooling roller unit | 1 套 1 set(series) |
8 | 牵引凹凸辊Traction bump roller | 2 组 2 sets |
9 | 平辊牵引Flat roll traction | 1 套 1 set(series) |

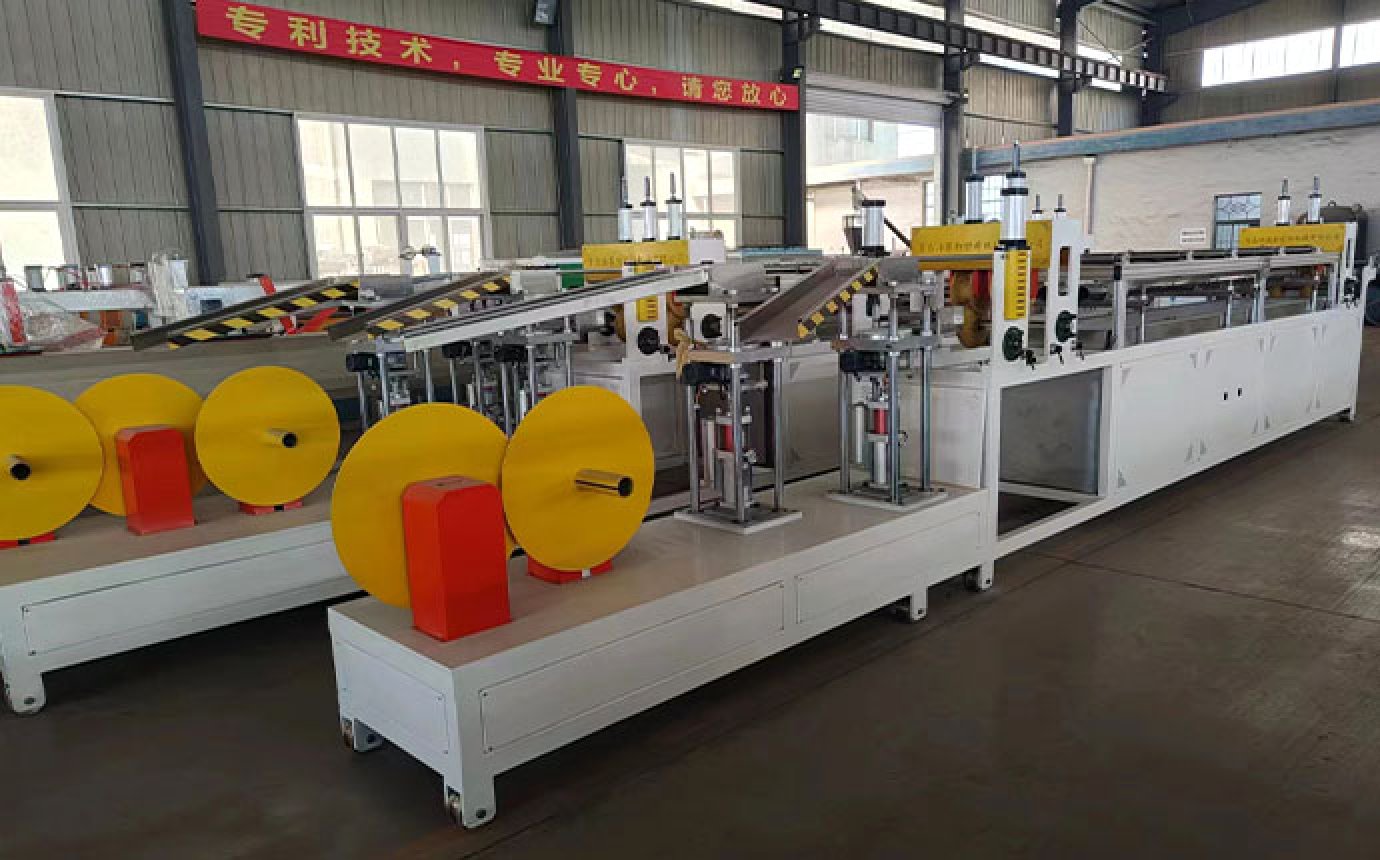

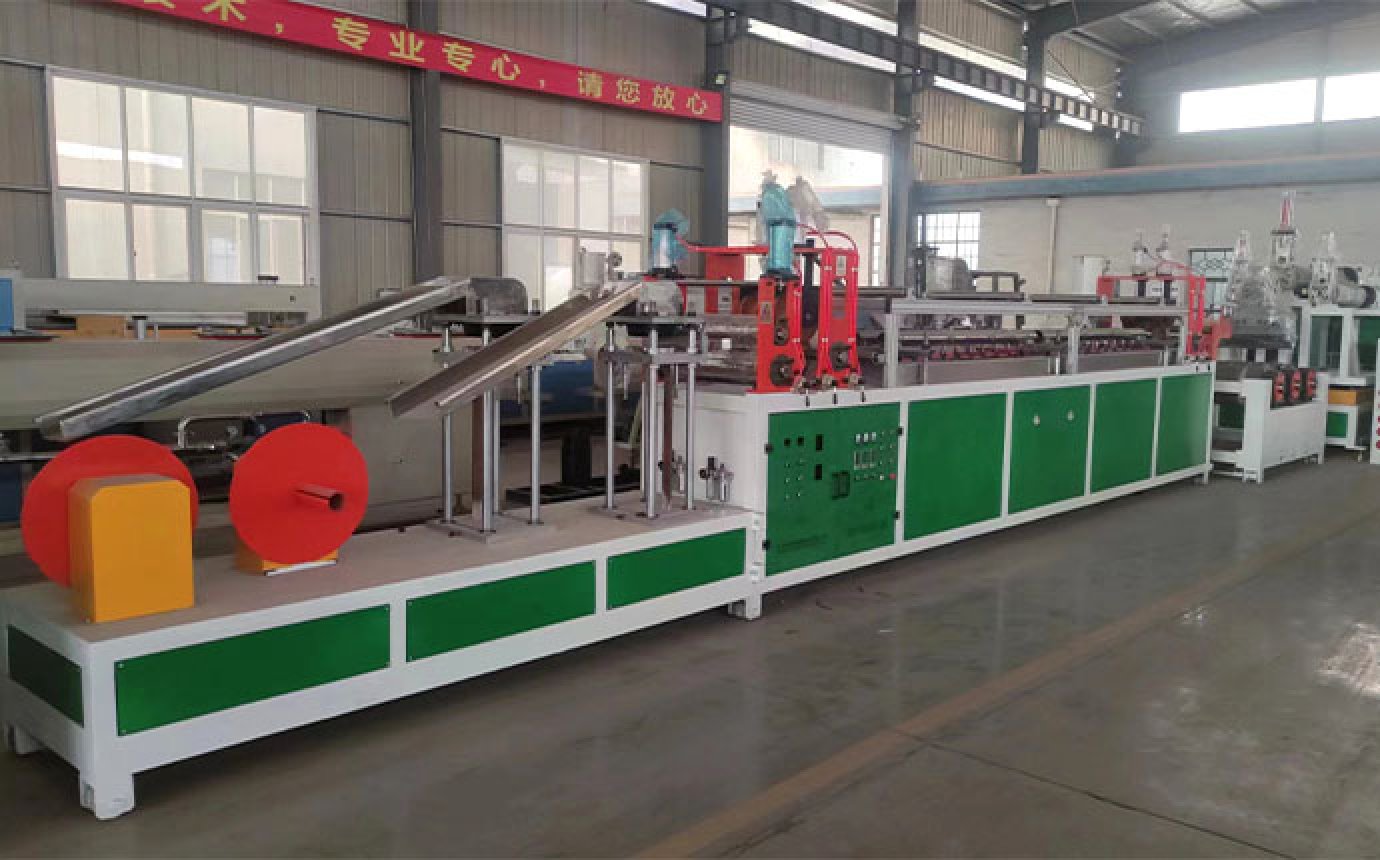

10 | 自动冲床Auto punching machine | 3 台 3 sets |
11 | 收卷(边料) Winding machine (wasted material) | 3 台 3 sets |
12 | 电气控制系统Electric control system | 1 套(ABB变频器) 1 set(ABB frequency converter) |
13 | 随机备件Spare parts | 1 套（工具） 1 set（tool） |
